Used 2006 BIRMINGHAM DL-26120L Gap Lathes Minnesota US | SOMINN MACHINERY SALES #1353981
Used

USED 2006 BIRMINGHAM DL-26120L

Minnesota, United States

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

SOMINN MACHINERY SALES
1,135Listings|22Followers
View seller profile
Overview
Gap Lathes
BIRMINGHAMDL-26120L2006
Specs

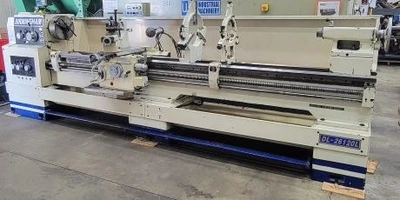

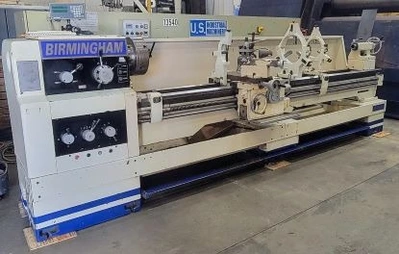

BIRMINGHAM (USED) MODEL DL-26120L HIGH SPEED PRECISION
ENGINE LATHES

26" MAX SWING OVER BED
120" MAX LENGTH OF WORKPIECE
17" MAX SWING OVER CARRIAGE
36" MAX SWING IN GAP
15-1/2" WIDTH OF BED
D1-8 SPINDLE NOSE
3-9/64 DIAMETER OF SPINDLE BORE
MT NO 5 TAPER HOLE IN SPINDLE
16-1600 RPM SPINDLE SPEEDS (16 SPEEDS)
0.0015 - 0.0772 IN./R. (54) LONGITUDINAL FEEDS
0.0006 - 0.0303 IN./R/ (54) CROSS FEEDS
0.5 - 120 MM (56 KINDS) METRIC THREADS
80 - 7/16 TPI (49 KINDS) INCH THREADS
0.25 - 60MM (47 KINDS) MODULE THREADS
160 - 7/8 D.P. (42 KINDS) DIAMETRAL THREADS
15" MAX TRAVEL OF CROSS SLIDE
6" MAX TRAVEL OF UPPER SLIDE
MT NO. 5 TAPER IN CENTER SLEEVE
1100 LBS MAX WORK PIECE WEIGHT
6" MAX TRAVEL OF CENTER SLEEVE
10 HP POWER OF MAIN MOTOR

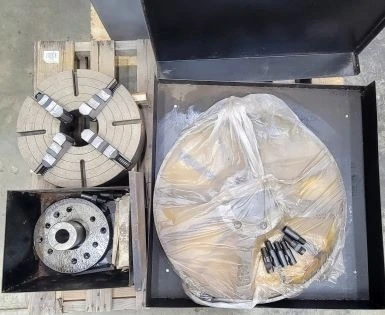

EQUIPPED WITH
- 12" 3 JAW CHUCK
- 8" STEADY REST
- REMOVABLE GAP
- 4-WAY RAPID TRAVEL
- 26" FACE PLATE
- FOLLOW REST
- SPLASH GUARD
- 16" 4-WAY CHUCK
- 4-WAY TOOL POST
