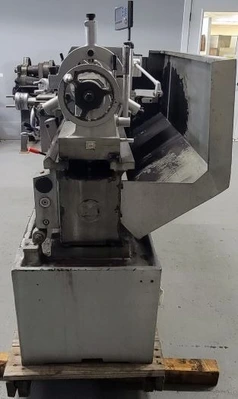

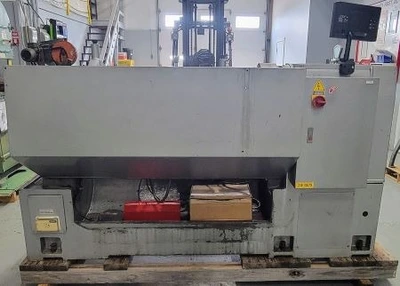

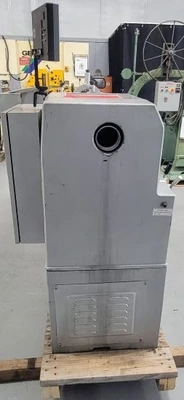

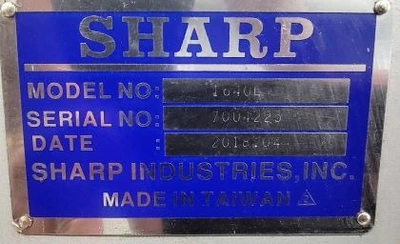

USED 2018 SHARP 1640L

SHARP (USED) MODEL 1640L PRECISION GEAR HEAD LATHE

CAPACITY
16" SWING OVER BED
8-3/4" SWING OVER CROSS SLIDE
24-3/8" SWING OVER GAP, WIDTH
10.75" WIDTH OF GAP
1.9" CENTER HEIGHT
40" DISTANCE BETWEEN CENTERS
HEADSTOCK
D1-8 CAMLOCK SPINDLE NOSE
3-1/16" SPINDLE BORE
12 SPINDLE SPEEDS 40-2,000
MT #6 SPINDLE BORE TAPER
MT #4 CENTER TAPER
THREADS AND FEEDS
18 LONGITUDINAL FEEDS 0.002"-0.032" IPR
12 CROSS FEEDS 0.001"-0.0094" IPR
36 INCH THREADS 4-56 TPI
17 METRIC MODULE THREADS 0.5-7 MM
36 DP THREADS 4-56 MM
4 TPI LEADSCREW PITCH, 1-3/8" DIAMETER
CARRIAGE
8.7" CROSS SLIDE TRAVEL
4.9" COMPOUND REST TRAVEL
4.5" COMPOUND WIDTH
BED
59" X 11.75"
TAILSTOCK
5" QUILL TRAVEL (GRADUATED)
2-1/4" QUILL DIAMETER
MT #4 QUILL TAPER
7.5 HP MOTOR, 3 PHASE, 230 VOLTS

STANDARD EQUIPMENT
10" 3-JAW CHUCK
COOLANT SYSTEM
HALOGEN WORK LIGHT
16" FACE PLATE
1/2" - 6" STEADY REST WITH BRONZE TIP
AMERICAN TOOL POST
FULL LENGTH SPLASH GUARD
FOLLOW REST
LONGITUDINAL CARRIAGE STOPS
TOOL KIT

FEATURES
EASY SELECTION FOR INCH/METRIC THREADS
1-PIECE CAST MEEHANITE BED

OPTION INCLUDED
BISON BRAND 12" 4-JAW CHUCK
BISON BRAND 12" FINE ADJUSTMENT
BISON BRAND 12" D1-8 ADAPTER PLATE
Power: 230 (3-Phase)
