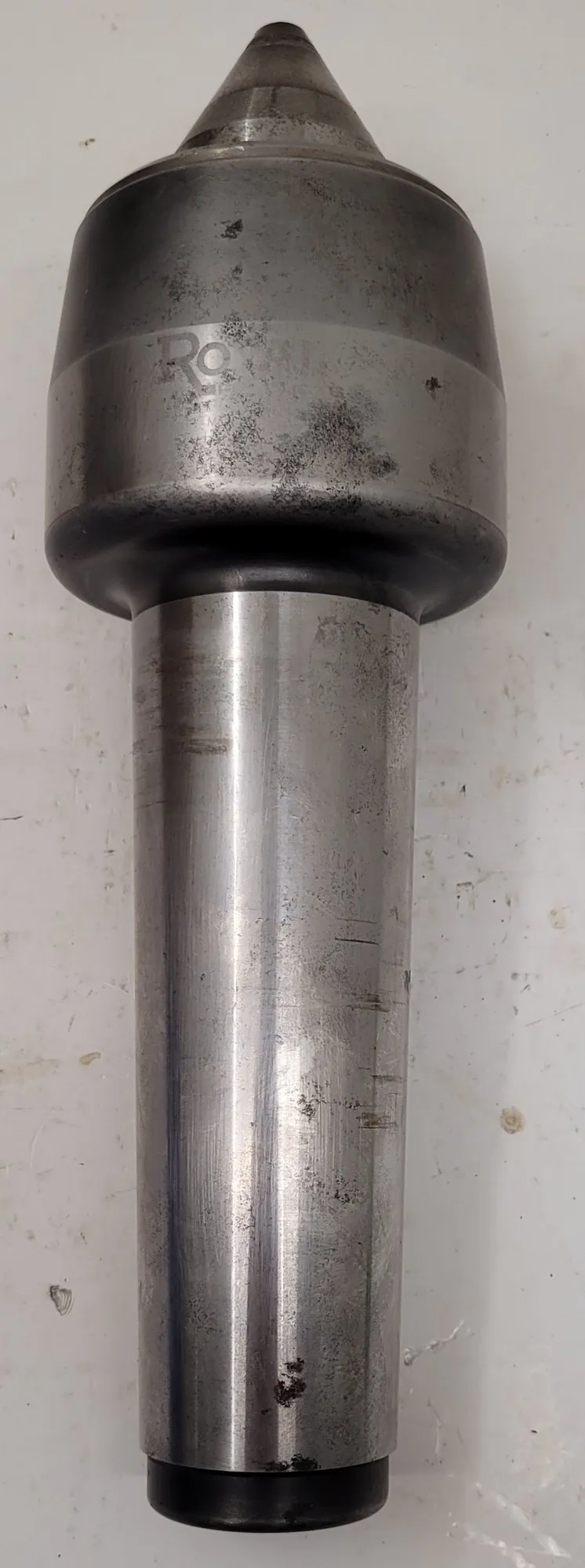

USED ROYAL 6MT Live Center

ROYAL 6MT Live Center, used, No.6 Morse taper, capable of handling workpieces up to 4,080 lbs. Max suggested RPM is 3,500 with 6,000 lbs. thrust load. Dimensions: B-4.00", E-3.150", F-2.31", G-2.00". See diagram for details.

ROYAL LIVE CENTER w/ No.6 MORSE TAPER

USED
Center Dimension A (Center Taper) 6 MT
Center Dimension B 4.00
Center Dimension E 3.150
Weight of Workpiece (lbs.) 4,080
Center Dimension F 2.31
Center Dimension G 2.00
Max Suggested RPM 3,500
Thrust Load (lbs.) 6,000
-DIAGRAM IN PHOTOS-
