USED OAKWOOD SC350

Lot Closes:: 8/26/2026 11:00:00 AM PT

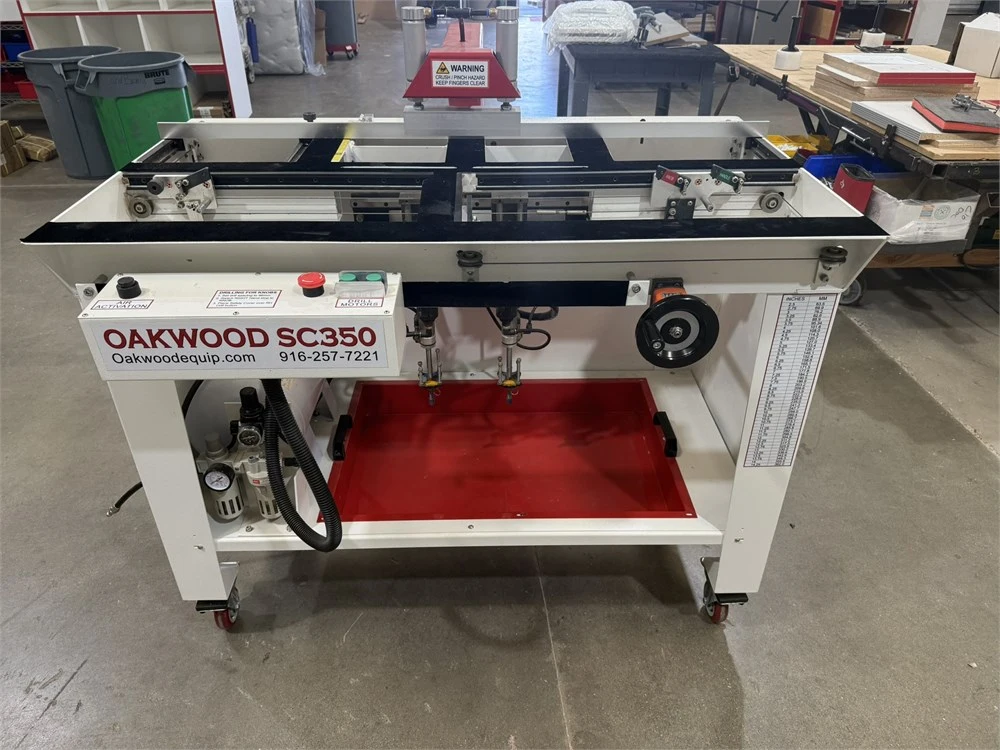

Oakwood "SC350" Self Centering Drilling Machine
See generic sales video of this model in operation, for reference only, not all options necessarily apply
Minimum Part Size, 4.5” x 8”
Maximum Part Size, 14” x 36” / 115mm x 204mm to 355mm x 914mm
Maximum drilling thickness, 1.5”
Minimum drawer box inside clearance, 8” when drilling boxes
Center to Center drill spacing, 2.5” to 13.75”
Back fence to drill center, 1”

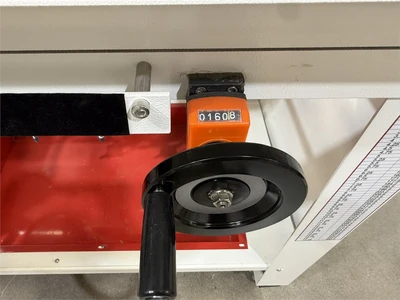

Drill spacing adjustable with front mounted wheel with metric digital indicator

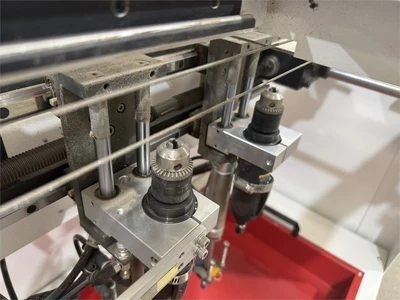

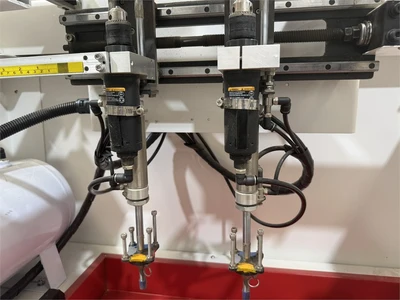

Two (2) air operated drills - each drill operated by its own activation button
Automatic oiler for air drills
Four (4) position drill depth stops
Movable button console for clearance on larger parts

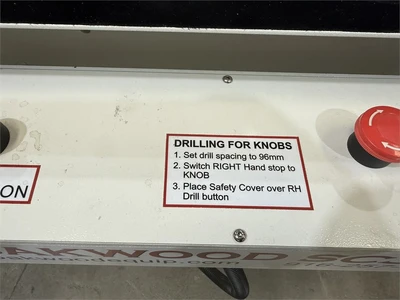

Two (2) handed operation for safety
5 mm brad point bits standard

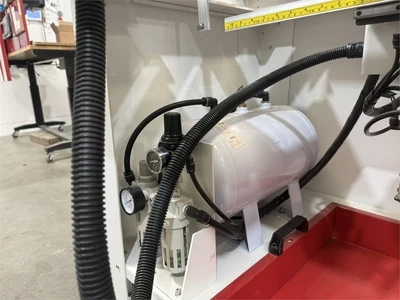

On board air tank with standard compressed air connection

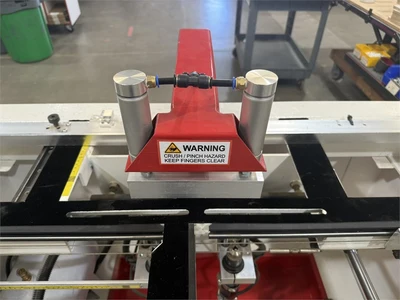

Removable/replaceable hold down drill stop

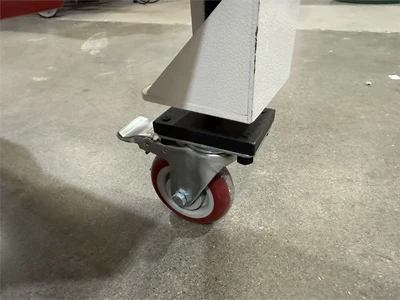

4” wheels - Two (2) with lock
Folding steel side tables
Adjustable height, 35” - 39”
Mounted on casters
