Haas UMC-750 – 2020

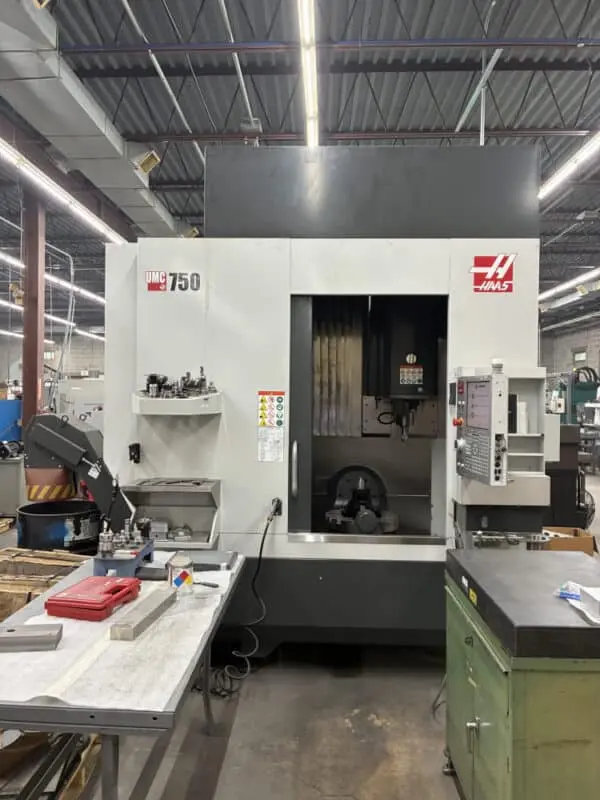

Haas UMC750 5 Axis Vertical Machining Center
Specs:

X‑Travel: 30.00 in (762 mm)

Y‑Travel: 20.00 in (508 mm)

Z‑Travel: 20.00 in (508 mm)

Spindle to Platter (max): ~24.0 in (610 mm)

Spindle to Platter (min): ~4.0 in (102 mm) Haas Automation Inc.

Spindle & Drive

Taper: CT40 / BT40

Max Speed: 8,100 rpm

Motor: Inline direct‑drive, 30 hp (22.4 kW)

Max Torque: 90 ft‑lb (122 Nm) @ 2,000 rpm Haas Automation Inc.+1

Trunnion Table (Integrated A & C Axes)

Diameter: 19.70 in (500 mm)

Tilt (B axis): +120° to ‑35°, max speed 50°/sec

Rotation (C axis): 360°, max speed 50°/sec

Max Part Swing: 27.0 in (686 mm)

Max Weight on Platter: 660 lb (300 kg) Haas Automation Inc.+1

Tool Changer

Type: Side‑mount (SMTC)

ATC: 30

Max Tool Diameter: 2.5 in (64 mm)

Max Tool Length: 12.00 in (305 mm)

Chip‑to‑chip time: ~2.4 sec (avg) Performance Machine Tools, Inc.

Feed & Rapid Rates

Max Cutting Feedrate: 650 ipm (16.5 m/min)

Rapid Traverse: 900 ipm (22.9 m/min) on all axes Haas Automation Inc.+1
Haas CNC Control

Through‑spindle coolant PREP ONLY

Wireless Intuitive Probing System (WIPS) with Renishaw
