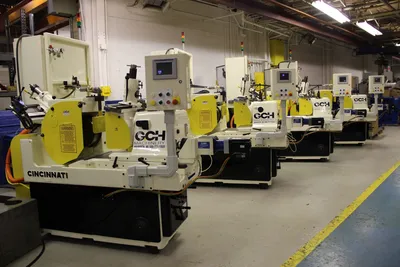

USED 1946 CINCINNATI #2 EA

#2 "EA" CINCINNATI CENTERLESS GRINDERS
2M2H1S-18 YEAR: 1946

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered
not included in price)
Standard work rest....................... 1/16" to 3 1/2" diameter
Low thru feed work rest.................. 2" to 4 3/4" diameter
Bar work......(18' Long)................. 1/8" to 2" diameter

GRINDING WHEEL (Not supplied)
4", 6", or 8" Width 12" Hole
20" Maximum diameter
14" Minimum diameter
Speed 1200 RPM

REGULATING WHEEL (Not supplied)
4", 6", or 8" Width 5" Hole
12" Maximum diameter
9" Minimum diameter
Range of speeds 12 to 300 RPM

MOTOR DRIVES
Grinding wheel........................... 15 HP
Regulating wheel......................... 1 1/2 HP
Hydraulic pump........................... 1 1/2 HP
Cutting fluid............................ 1/4 HP
Floor space.............................. 53" x 86"
Weight................................... 6,400 lbs.

EQUIPMENT & FEATURES
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Screw type truing on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
Coolant pump and tank.

Specifications are deemed accurate, however, subject to verification or prior sale.
