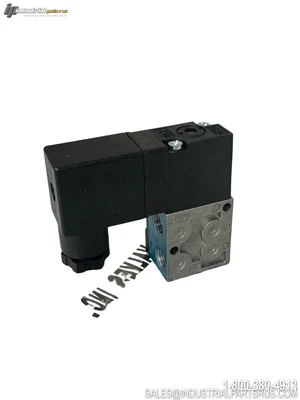

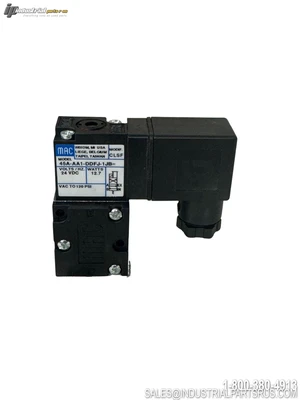

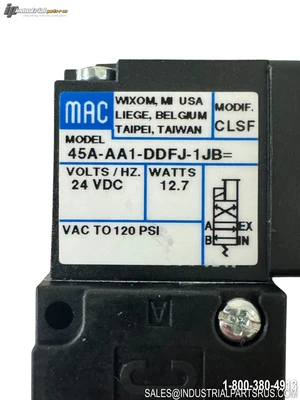

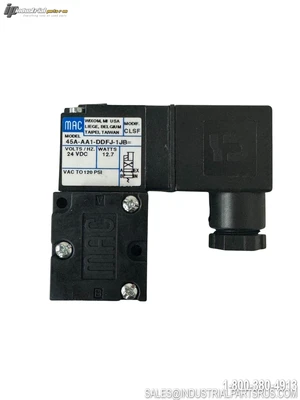

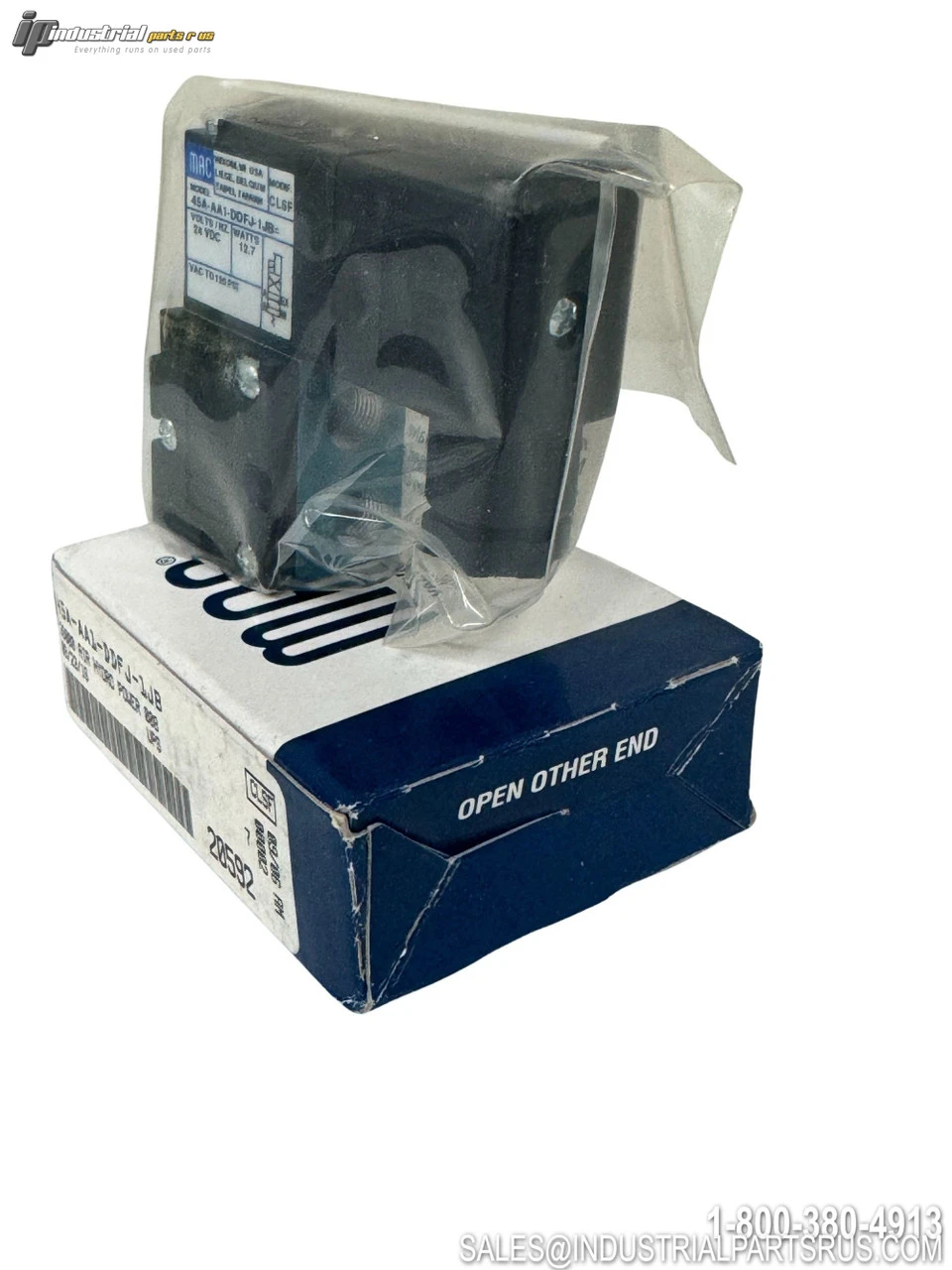

NEW MAC 45A-AA1-DDFJ-1JB

The MAC Valves 45A-AA1-DDFJ-1JB is a 45 Series direct-solenoid-operated 4/2-way poppet valve designed for precise pneumatic directional control. It features a 24 VDC, 12.7-watt coil, four 1/8" NPTF female ports, a non-locking recessed manual operator, and a rectangular plug-in DIN 43650 electrical connector. The balanced poppet and short-stroke MACSOLENOID design deliver fast, repeatable response times and long service life across high-cycle industrial applications.
Specification
Value
Brand
MAC Valves
Model / Part Number
45A-AA1-DDFJ-1JB
Product Series
45 Series
Valve Type
Direct Solenoid Operated Poppet Valve
Valve Function
4-Way / 2-Position (4/2)
Number of Ports
4 Port Body
Port Size / Thread Type
1/8" NPTF (Female)
Coil Voltage
24 VDC
Coil Power
12.7 W
Flow Coefficient (Cv)
0.15
Pressure Range
Vacuum to 120 PSI (0–8.3 bar)
Media
Compressed Air, Inert Gases, Vacuum
Manual Operator
Non-Locking Recessed Manual Operator
Electrical Connection
Rectangular Plug-In DIN 43650 Connector
Flow Controls
None (No Flow Controls)
Operation Type
Monostable (Spring Return)
Return Mechanism
Steel Mechanical Spring Reset
Mounting / Installation
Individual In-Line
Body Material
Aluminum
Dimensions (H x W x D)
63 mm x 25 mm x 62 mm
Weight
0.30 lbs
Compliance Standards
IEC 61508, IEC 61511, ISO 13849, REACH
