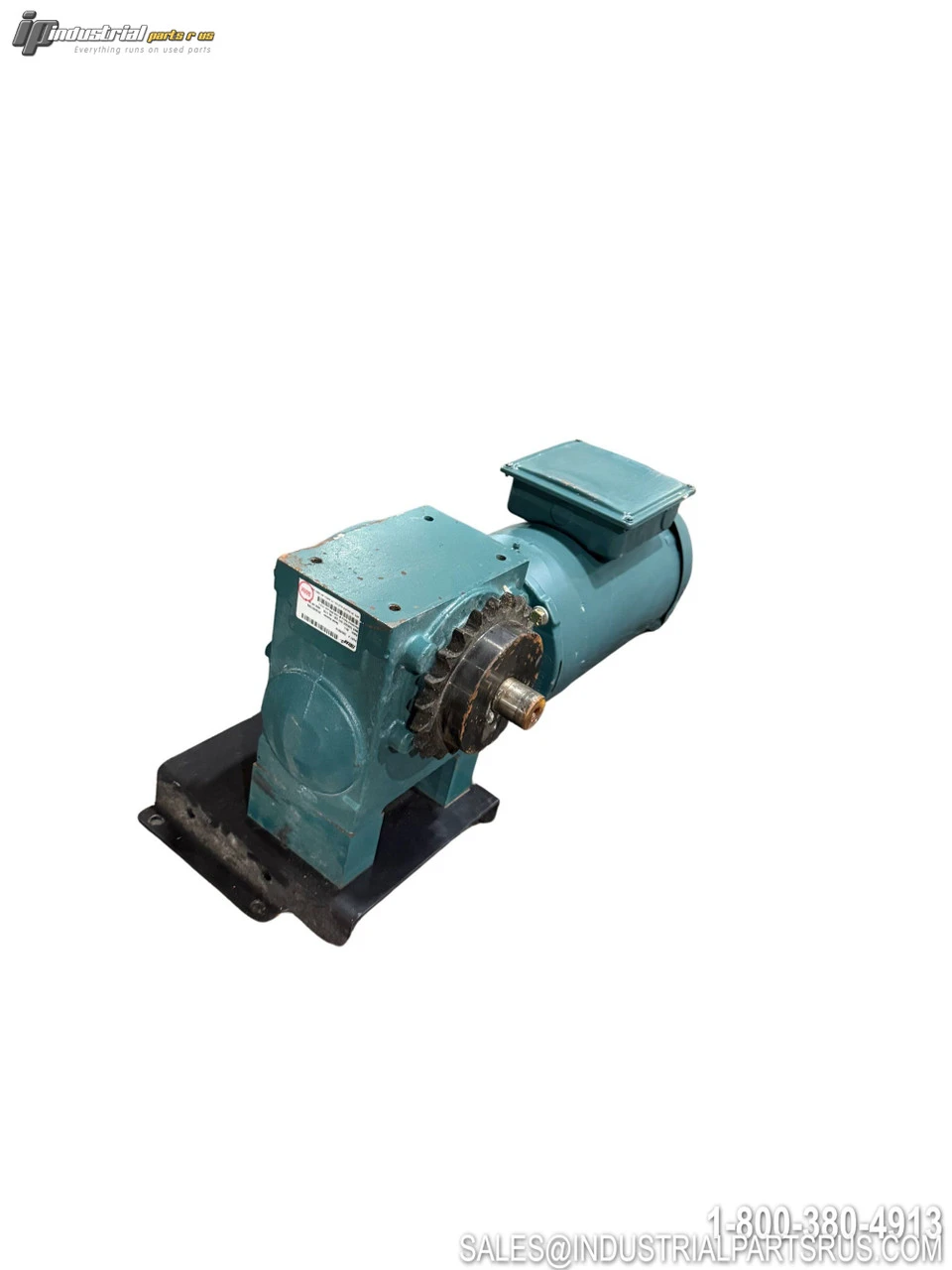

USED BALDOR 23Q20R14

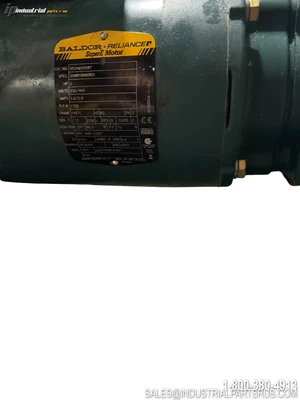

The Baldor-Reliance VEUHM3558T is a 2 HP, three-phase AC induction motor engineered for unit and baggage handling applications including conveyors, packaging equipment, machine tools, hoists, and door openers. It features a Totally Enclosed Fan-Cooled (TEFC) steel frame construction in a 145TC C-face footless (F3) mounting configuration, making it ideal for direct-coupled drive applications. The motor is inverter ready, carries NEMA Design B characteristics, and meets NEMA Premium efficiency standards with 86.5% full-load efficiency. The shaft is a straight type with keyway, and the motor carries an IP54 protection rating.
The

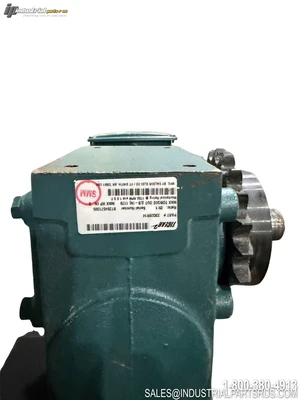

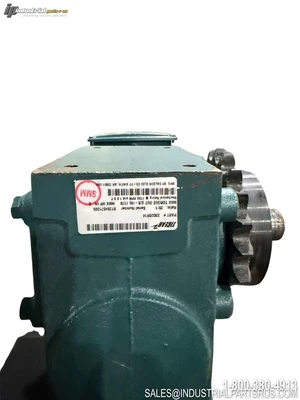

Dodge 23Q20R14
is:
Brand:
Dodge
Model:
23Q20R14
Series:
Tigear-2
Type:
Right-angle worm gear reducer
Ratio:
20:1
Rated HP:
2 HP
Input:
Quill
Input size:
7/8"
Output:
Solid B Right
Output shaft:
1-1/8"
Maximum output speed:
88 RPM
Maximum input speed:
1,750 RPM
Torque rating:
1,178 in-lb
Lubrication:
Synthetic oil
Specification
Value
Brand
Baldor / Baldor-Reliance
Model / Part Number
VEUHM3558T
Motor Type
Three-Phase AC Induction — Unit Handling
Output / Horsepower
2 HP (1.5 kW)
Synchronous Speed
1800 RPM @ 60 Hz
Full Load Speed (Nameplate)
1750 RPM
Voltage
208-230 / 460 VAC
Phase
3
Frequency
60 Hz
Full Load Amps
6.6A @ 208V / 5.8A @ 230V / 2.9A @ 460V
High Voltage Full Load Amps
2.9 A
Enclosure Type
TEFC (Totally Enclosed Fan Cooled)
Frame Size
145TC
Frame Material
Steel
Mounting Type
C-Face Footless (F3)
Number of Poles
4
NEMA Design Code
B
KVA Code
L
Insulation Class
F
Service Factor
1.15
Efficiency @ 100% Load
86.5%
Power Factor
80
Duty Rating
Continuous (CONT)
Ambient Temperature
40°C
Shaft Diameter
0.875 in (7/8 in)
Overall Length
13.29 in
Bearing Type
Ball
Bearing Grease Type
Polyrex EM (-20°F to +300°F)
Inverter Ready
Yes
Rotation
Reversible
Number of Speeds
1
Baldor Motor Type Code
3526M
Agency Approvals
CE, CSA, UR (NEMA Premium)
Ship Weight
48 lbs
We warranty all items for 30 days from date of purchase.
