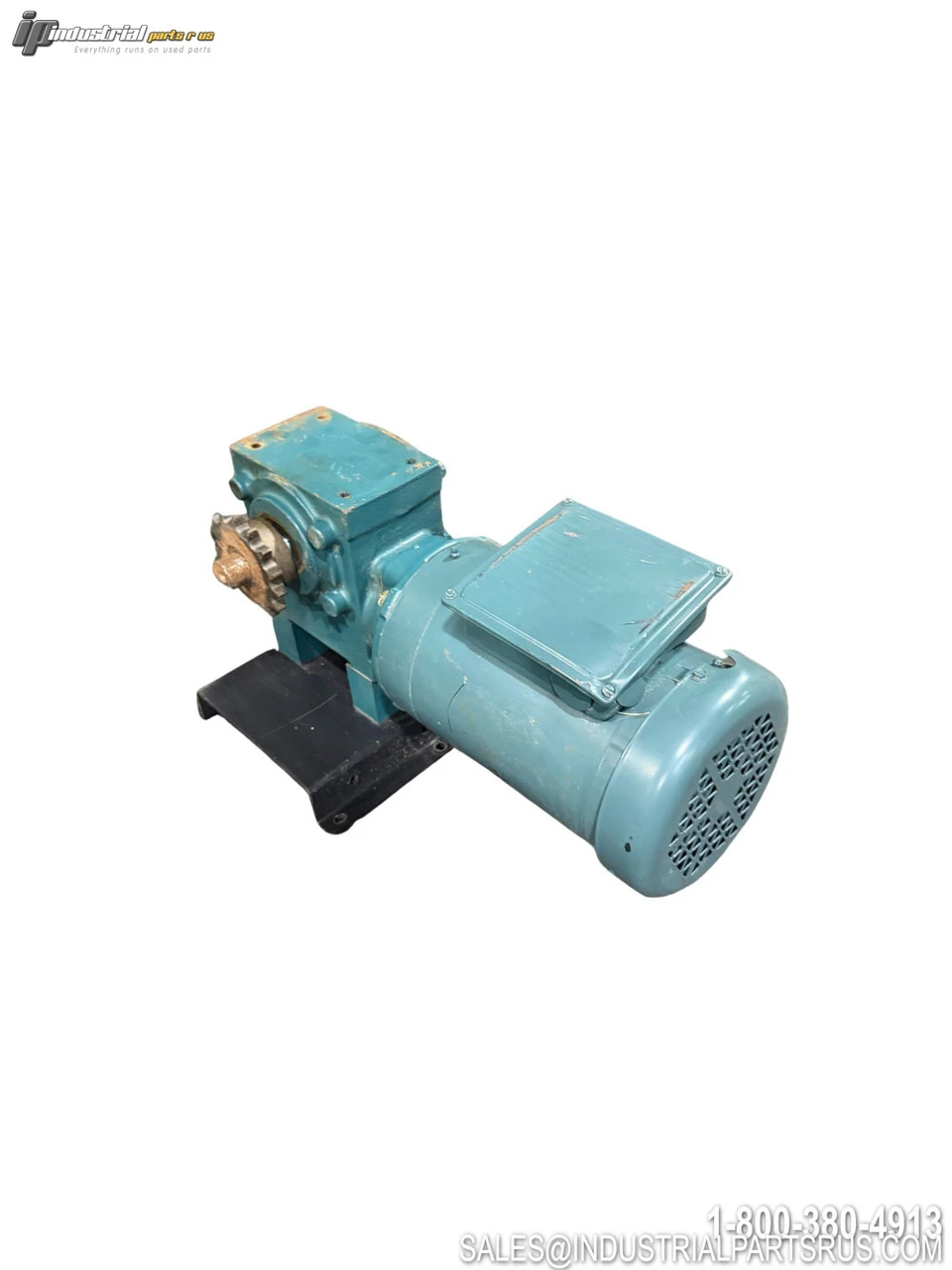

USED BALDOR 23Q15R14

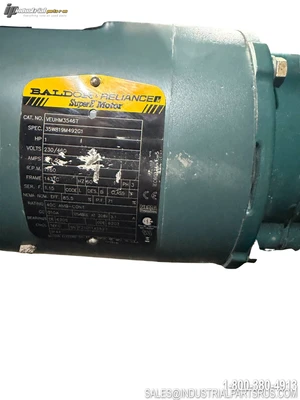

The Baldor VEUHM3546T is a 1 HP, 3-phase, Totally Enclosed Fan Cooled (TEFC) AC induction motor designed for unit handling and conveyor applications. It features a NEMA 143TC frame with C-face (F3) footless mounting, operates on 230/460V at 60 Hz, and is rated inverter duty for use with variable frequency drives. Built to NEMA Premium Efficiency standards with Class F insulation and a 1.15 service factor, this motor delivers reliable continuous-duty performance in demanding industrial environments.
Specification
Value
Brand
Baldor-Reliance
Model / Part Number
VEUHM3546T
Horsepower
1 HP (0.75 kW)
Rated Speed (RPM)
1760–1770 RPM
Synchronous Speed
1800 RPM
Phase
3
Voltage
208-230/460V
Frequency
60 Hz
Full Load Amps
3.2A @ 208V / 3.2A @ 230V / 1.6A @ 460V
Frame
143TC
Frame Material
Steel
Enclosure Type
TEFC (Totally Enclosed Fan Cooled)
Mounting Type
C-Face, Footless (F3)
Number of Poles
4
Design Code
NEMA Design B
Insulation Class
F
Service Factor
1.15
Efficiency @ 100% Load
85.5%
Power Factor
69
KVA Code
L
Shaft Diameter
0.875 in (7/8")
Overall Length
13.29 in
Shaft Rotation
Reversible
Bearing Type
Ball
Bearing Grease Type
Polyrex EM (-20°F to +300°F)
Inverter Duty
Yes (Inverter Ready)
Duty Rating
Continuous (CONT)
Ambient Temperature
40°C Max
Number of Speeds
1
Product Family
Unit Handling (General Purpose)
Agency Approvals
CE, CSA, UR, NEMA Premium, EEV, WEEE
Hazardous Location
None / Not Applicable
Motor Weight
38 lbs (17.21 kg)
Manufacturer Model #
35W819G004G1
Motor Lead Quantity / Wire Size
9 leads @ 18 AWG
Conduit Box Material
Steel
We warranty all items for 30 days from date of purchase.
