NEW TIGEAR 23Q15R56

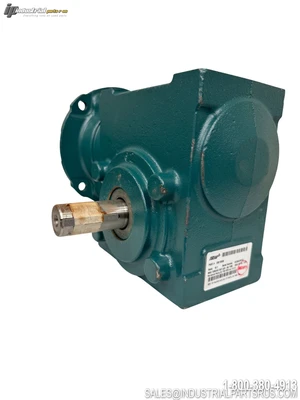

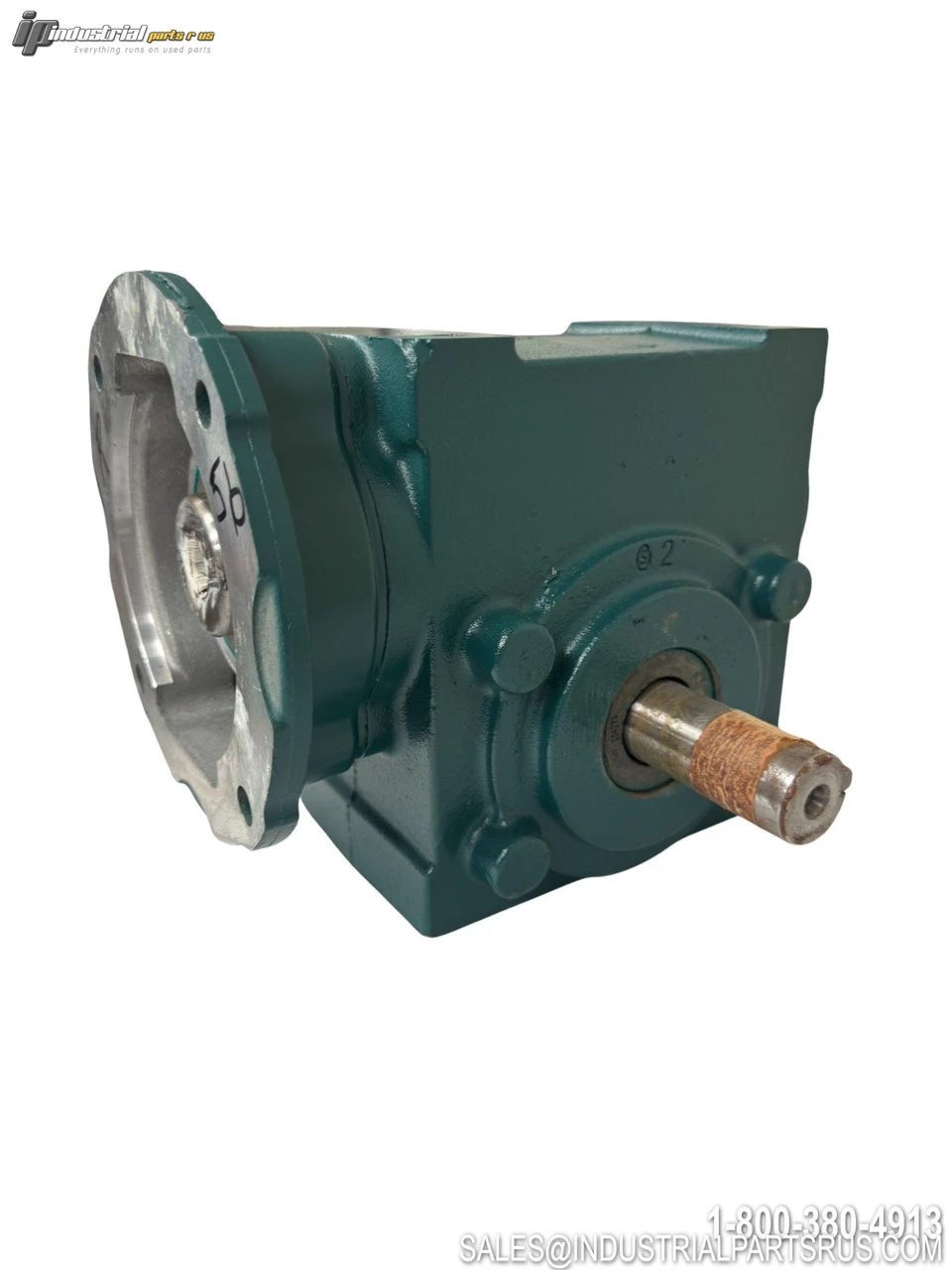

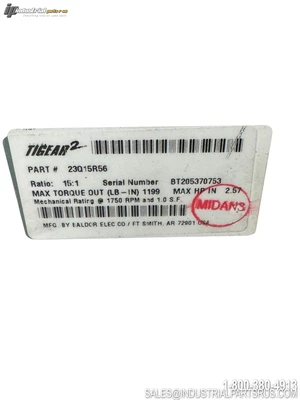

The Dodge Tigear-2 23Q15R56 is a right-angle single-stage worm gear speed reducer featuring a quill-style C-Face input for direct NEMA 56C motor mounting and a right-hand solid output shaft. With a 15:1 gear ratio and 2.3" center distance, this size 23 unit delivers 1,105 in-lb of output torque in a totally enclosed, ventless, maintenance-free design factory-filled with synthetic lubricant. The rugged Class 30 gray iron housing is suitable for a wide range of industrial power transmission applications including conveyors, material handling, and packaging equipment.
Specification
Value
Brand
Dodge / Tigear-2 (Baldor)
Model / Part Number
23Q15R56
Product Series
Tigear-2
Reducer Type
Right Angle Worm Gear Speed Reducer
Gear Ratio
15:1
Unit Size
23
Center Distance
2.3 in (2.31 in)

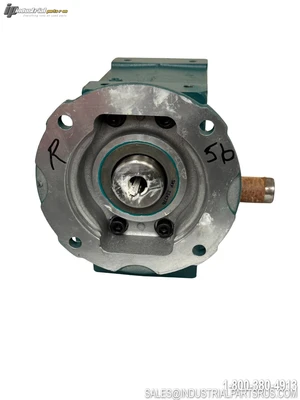

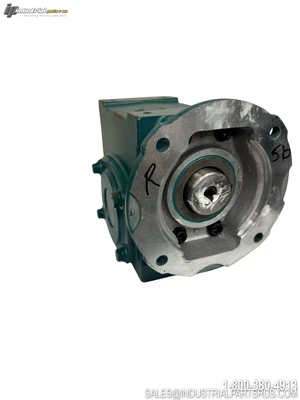

Input Type
Quill Input (C-Face)
Motor Frame Compatibility
NEMA 56C
Input Bore Diameter
5/8 in (0.625 in)
Output Configuration
Right-Hand Solid Output Shaft
Output Shaft Diameter
1.25 in (1-1/4 in)
Rated Input Horsepower
0.5 HP
Rated Output Torque
1,105 in-lb
Maximum Output RPM
75 RPM (at 1750 RPM input)
Maximum Input RPM
1750 RPM
Service Factor (S.F.)
1.33
Housing Material
Class 30 Gray Iron (Cast Iron)
Paint / Finish
Green
Lubrication
Synthetic Oil (Factory Filled, Maintenance-Free)
Seal Type
Single-Lip Contact
Efficiency Range
60–95%
Enclosure / Venting
Totally Enclosed, Ventless
Output Shaft Rotation
Right Hand
Mounting
No Base (Optional Bolt-On Base Available)
Dimensions (L x W x H)
9.94 in x 6.62 in x 9.31 in (approx.)
We warranty all items for 30 days from date of purchase.
