USED 2024 SHOPSABRE SHOPMASTER PRO 10 PLASM CUTTER

Capacity: 0‘ x 0‘

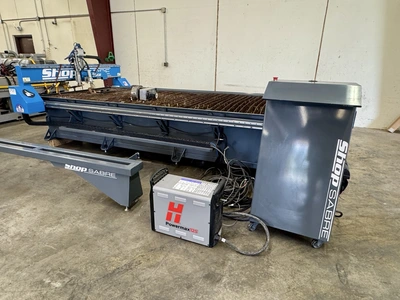

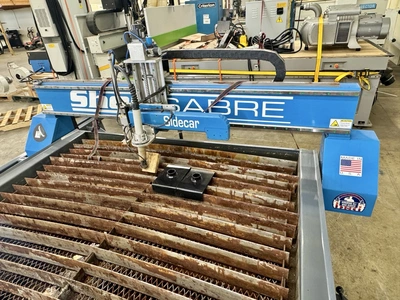

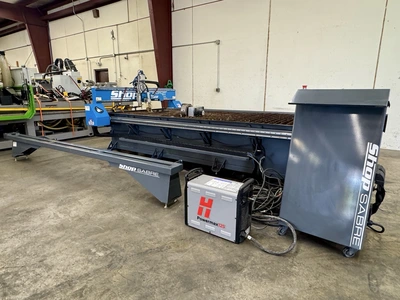

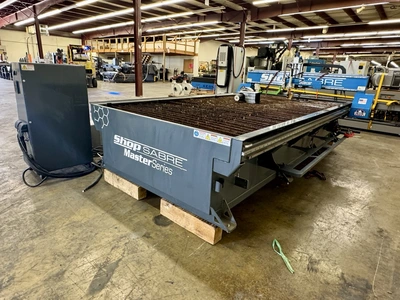

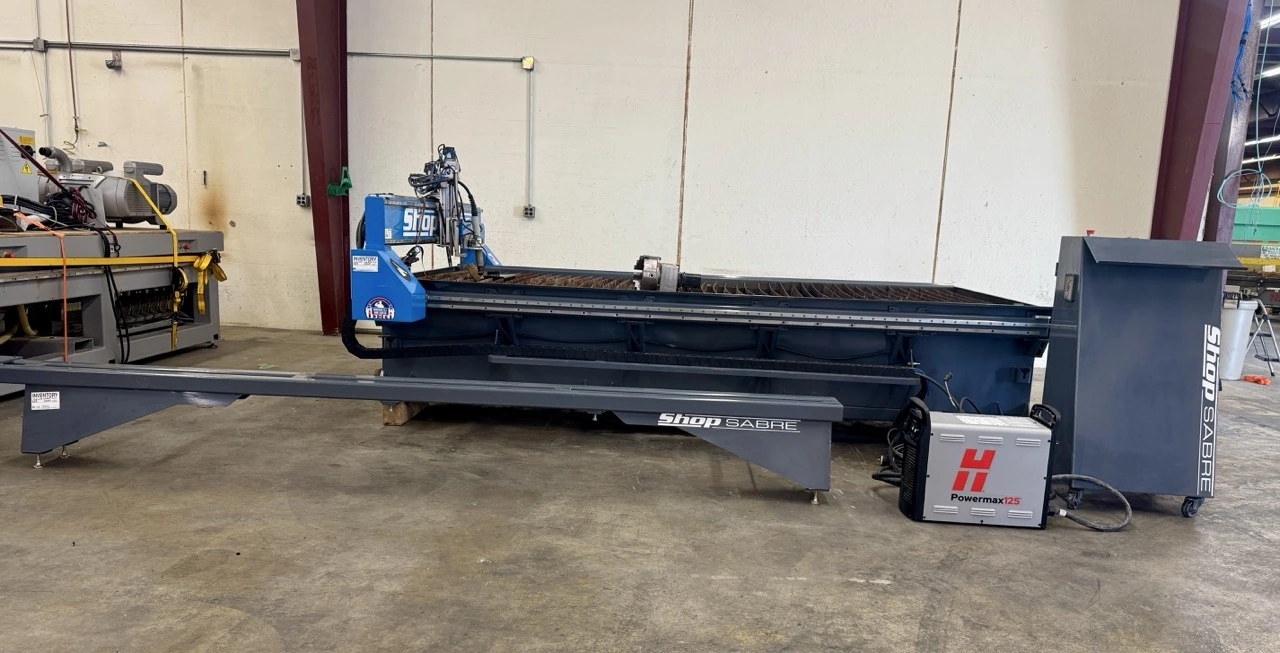

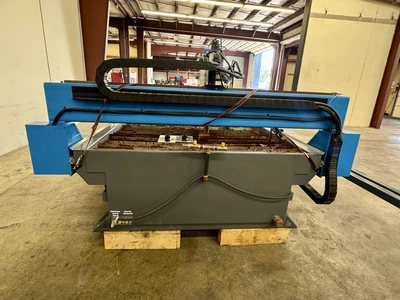

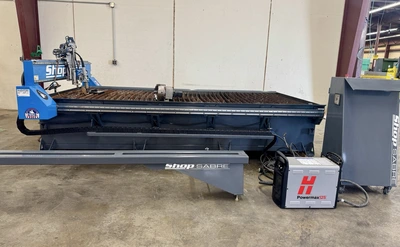

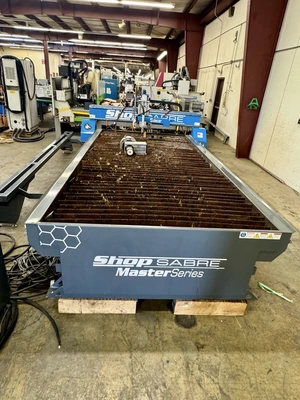

2024 ShopSabre ShopMaster PRO 10 industrial CNC plasma cutting system featuring a 5′ x 10′ cutting table and Hypertherm Powermax125 125-amp plasma source for high-production cutting of mild steel, stainless steel and aluminum.
Manufacturer ShopSabre
Model ShopMaster PRO 10
Year 2024
Machine Type CNC Plasma Cutting Table
Nominal Processing Size 5′ x 10′
X-Axis Travel 121 in.
Y-Axis Travel 64 in.
Z-Axis Travel 9 in.
Z-Axis Clearance 8 in. standard
Rapid Traverse Up to 2,500 IPM
Positional Repeatability ±0.002 in.
Motion System AC digital closed-loop servo motors with encoder feedback
Maximum Cutting Capacity Up to 6 in., plasma/process dependent

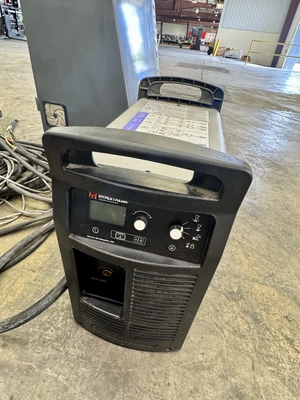

Plasma Power Source Hypertherm Powermax125
Plasma Output 125 amps
Powermax125 Duty Cycle 100% at rated 125A output
Mechanized Pierce Capacity 1 in. / 25 mm
Plasma Gas Clean, dry, oil-free compressed air or nitrogen
Required Air Flow Approx. 9.2 SCFM / 260 L/min @ 85 PSI while cutting
Powermax Technology Inverter / IGBT
Powermax Electrical Efficiency Approx. 91–92%
Powermax Input Power 3-phase; exact voltage configuration should be verified from data plate

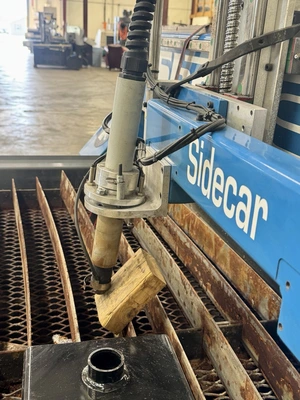

Torch Hypertherm mechanized machine torch; verify exact torch/lead length
Torch Height Control Automatic CNC torch-height control; verify installed configuration
Cutting Materials Mild steel, stainless steel, aluminum and other electrically conductive metals
Table Type Verify water table / downdraft configuration

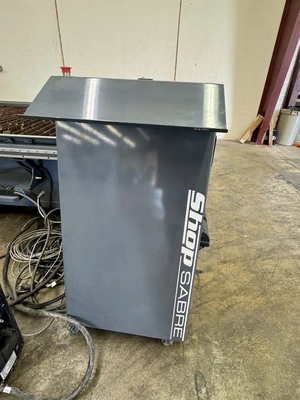

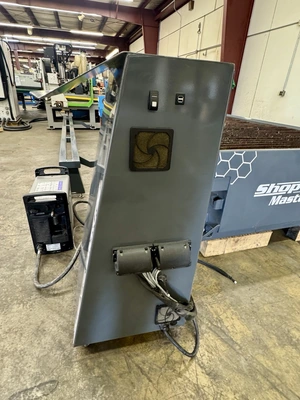

Controller ShopSabre CNC control system
CAD/CAM Software Verify software package and transferable licenses
Machine Footprint Approx. 91″ W x 148″ L x 59″ H for current PRO 10 configuration
