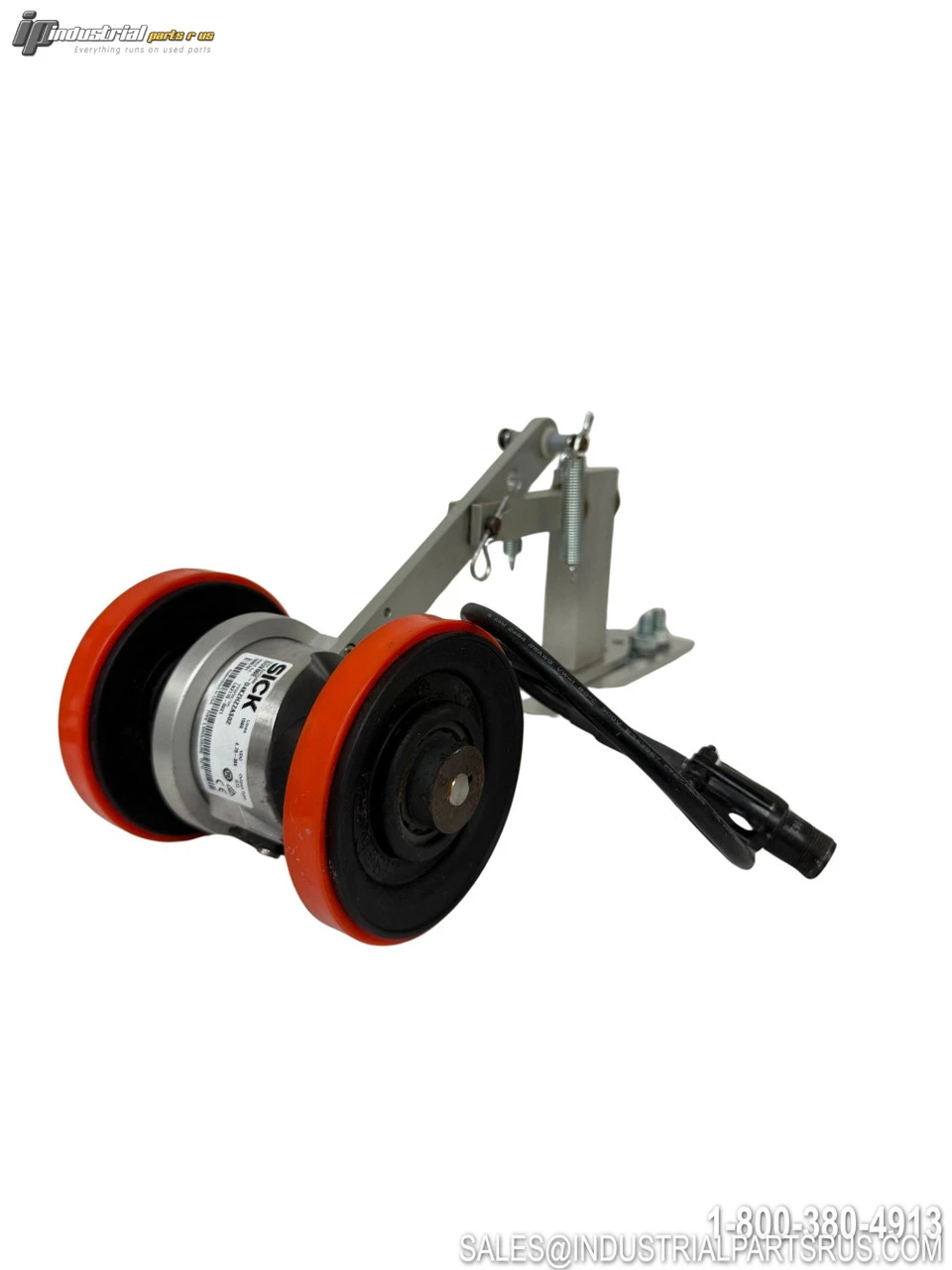

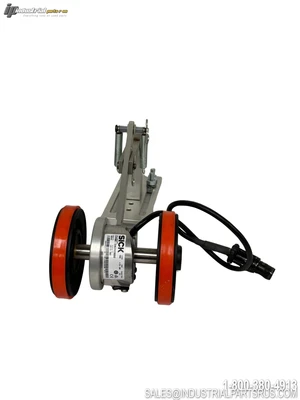

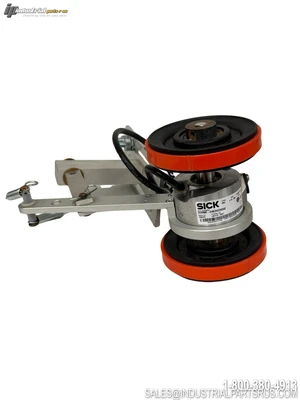

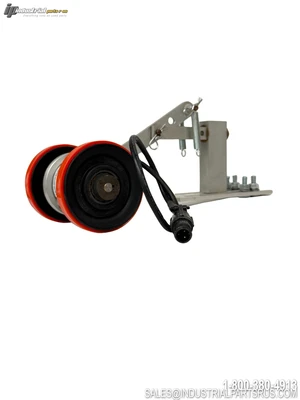

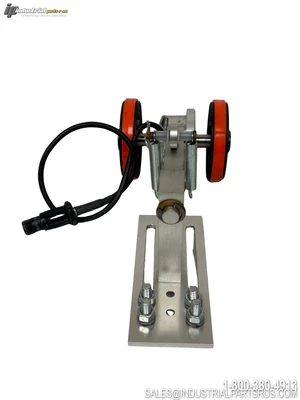

USED SICK DUV60E-D4KZHZZAS02

The Sick DUV60E-D4KZHZZAS02 is a special-device incremental measuring wheel encoder from the Sick DUV60 series, designed for conveyor, web, and logistics linear measurement applications. It features DIP switch programmability for output voltage, resolution, and counting direction, eliminating the need for additional programming tools. This unit belongs to the D4KZH family, sharing the 1500 PPR resolution and 300 mm measuring wheel circumference platform with spring-tension under-belt flange mount design.
Specification
Value
Brand
Sick
Model / Part Number
DUV60E-D4KZHZZAS02
Product Series
DUV60
Product Type
Incremental Measuring Wheel Encoder
Special Device
Yes (AS02 Special Variant)
Encoder Technology
Incremental
Pulses Per Revolution (PPR)
1500 PPR
Resolution Range
0.125 mm/pulse to 304.8 mm/pulse
Output Signal Type
TTL / HTL (DIP switch selectable)
Supply Voltage
4.75 V – 30 V DC
Power Consumption (max, no load)
≤ 1.25 W
Load Current (max, per channel)
≤ 30 mA
Maximum Output Frequency
60 kHz
Reference Signal, Number
1
Reference Signal, Position
90°, electric, logically gated with A and B
Measuring Wheel Circumference
300 mm
Measuring Wheel Surface
Smooth plastic (urethane)
Spring Arm Design
Spring tension, under-belt flange mount
Connector Type
Special / Custom (ZZ variant — see label)
Configuration Method
DIP switch (resolution, output voltage, counting direction)
Reverse Polarity Protection
Yes
Short-Circuit Protection
Yes
IP Rating
IP65
Operating Temperature
-30°C to +70°C
Mass (approx.)
0.9 kg
Encoder Housing Material (Shaft)
Stainless Steel
Encoder Housing Material (Flange)
Aluminum
Encoder Housing Material (Body)
Aluminum
Spring Arm Material
Spring Steel
MTTF (Mean Time to Dangerous Failure)
275 years (EN ISO 13849-1)
Rotational Life Cycles
3,600,000,000
Maximum Rotational Speed
1500 RPM
Standards / Approvals
CE, RoHS
Typical Applications
Conveyor, web, sheet metal, textiles, paper, logistics
We warranty all items for 30 days from date of purchase.
