NEW SENSOPART FR 20 RG-PSM4

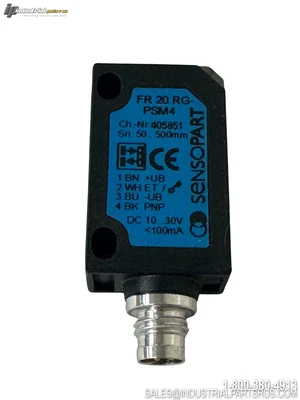

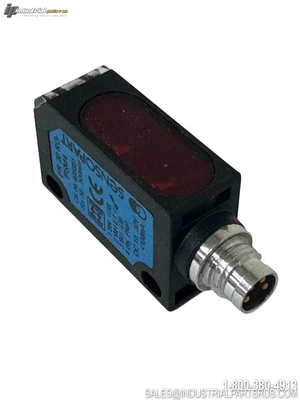

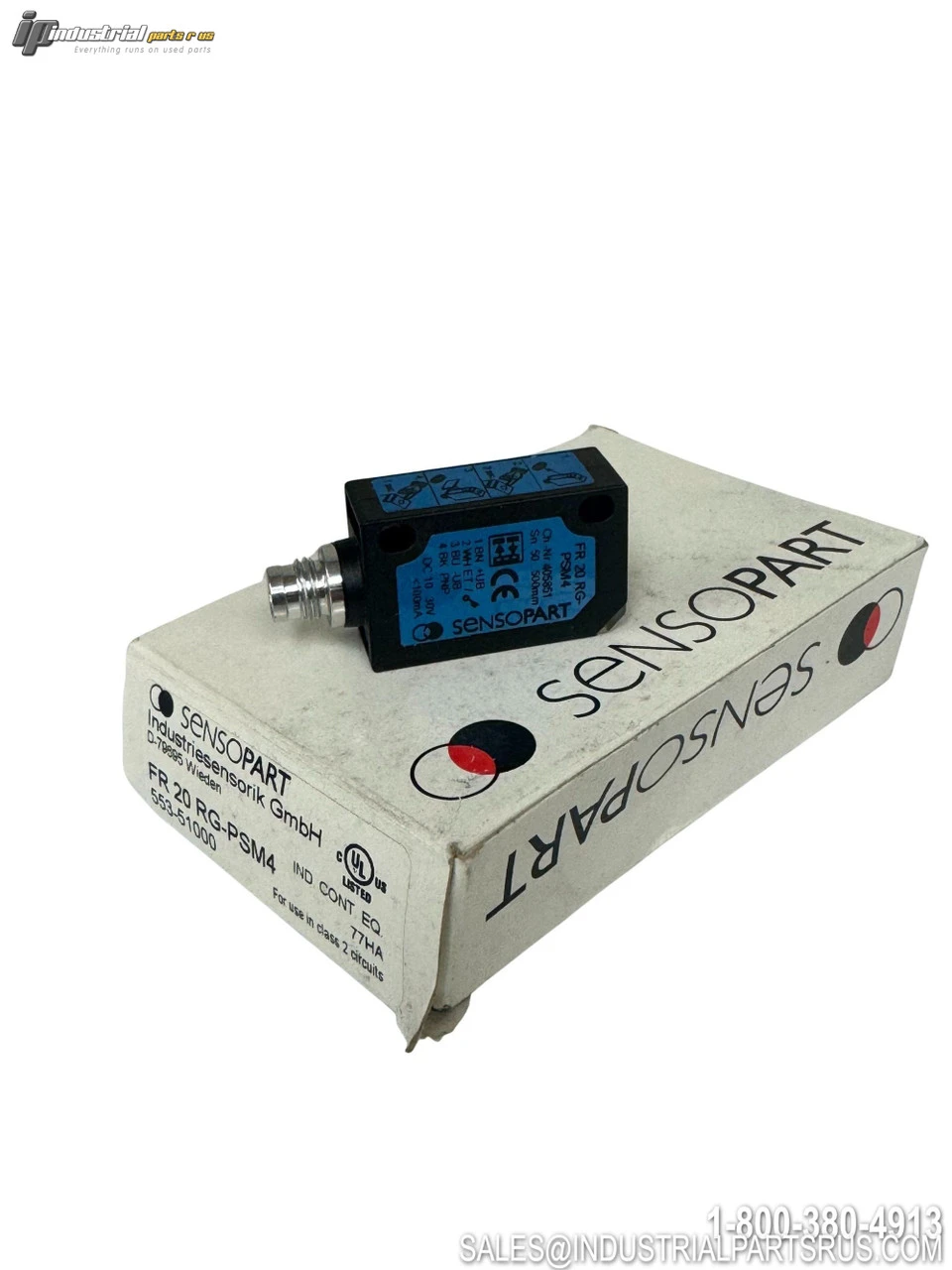

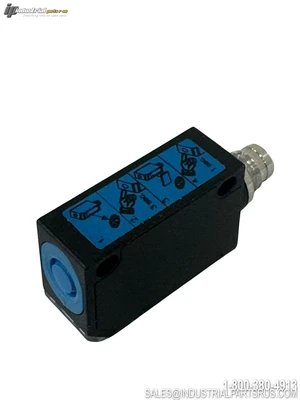

The SensoPart FR 20 RG-PSM4 is a compact rectangular photoelectric sensor from the F20 series, designed for autocollimation-based glass detection applications. It features Teach-In adjustment, a PNP normally-open switching output, and connects via an M8 4-pin plug connector. The sensor is part of SensoPart's widely-used F20 miniature housing series, offering a broad range of detection variants suited for positioning, transparent object detection, and fine-part sensing in industrial automation environments.
Specification
Value
Brand
Sensopart
Model / Part Number
FR 20 RG-PSM4
Product Type
Photoelectric Sensor
Series
F20 (32 x 20 x 12 mm housing)
Sensing / Operating Range
500 mm
Detection Method
Autocollimation (Glass Detection)
Adjustment
Teach-In
Light Source
LED, Red
Output Type
PNP N.O. (Normally Open)
Supply Voltage
10–30 V DC
Switching Frequency
1000 Hz
Connection Type
Plug M8, 4-pin
Housing Dimensions
32 x 20 x 12 mm
Enclosure Rating
IP 67
Operating Temperature
-20°C to +60°C
Application
Glass Detection, Transparent Object Detection
Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
