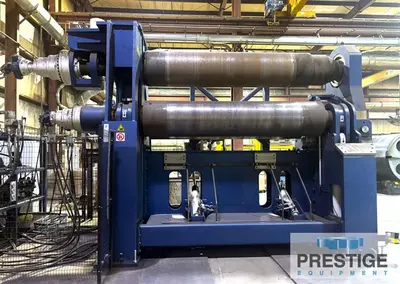

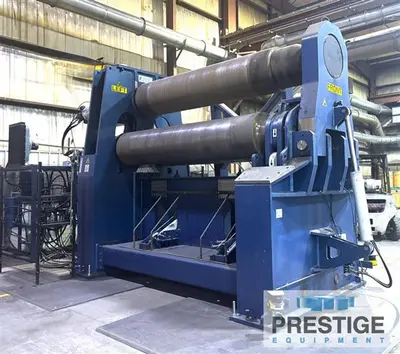

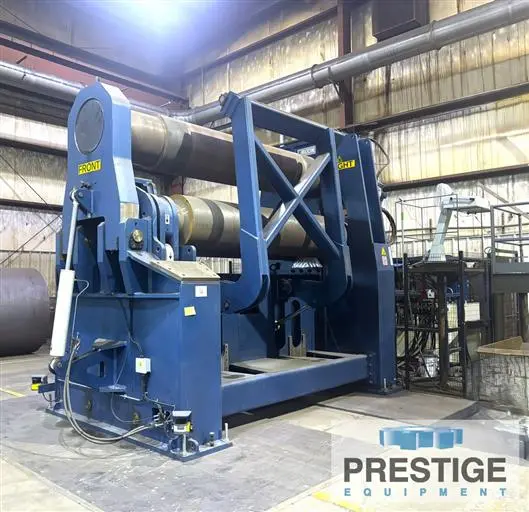

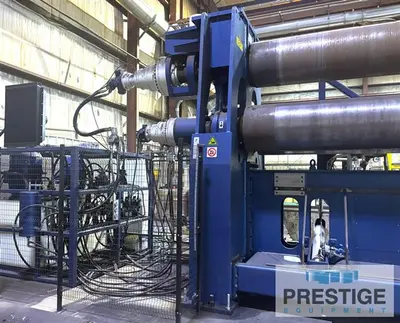

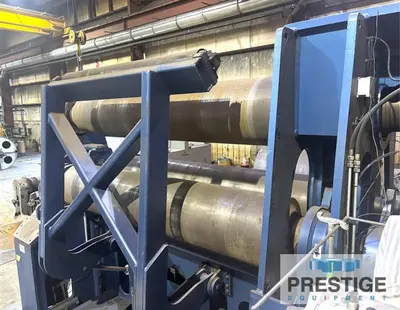

USED 2025 FACCIN 3HEP-SX210

CAPACITY:
Max. Plate Width: 120"
Top Roll Diameter: 26"
Side Rolls (2) Diameter: 24.8"
Max. Rolling Speed: 20 FPM
Main Drive Motor: 175 HP

BENDING CAPACITIES, MATERIAL YIELD STRENGTH 37.7 KSI:
Max. Plate Thickness @130" ID: 3" x 120"
Max. Plate Thickness @34" ID: 2.5" x 120"
Max. Plate Thickness @130" ID: 3.75" x 60"

PRE-BEND CAPACITIES, MATERIAL YIELD STRENGTH 37.7 KSI:
Max. Plate Thickness @130" ID: 2.5" x 120"
Max. Plate Thickness @34" ID: 2" x 120"
Max. Plate Thickness @130" ID: 3.13" x 60"

BENDING CAPACITIES, MATERIAL YIELD STRENGTH 52.2 KSI:
Max. Plate Thickness @130" ID: 2.5" x 120"
Max. Plate Thickness @34" ID: 2.18" x 120"
Max. Plate Thickness @130" ID: 3.13" x 60"

PRE-BEND CAPACITIES, MATERIAL YIELD STRENGTH 52.2 KSI:
Max. Plate Thickness @130" ID: 2" x 120"
Max. Plate Thickness @34" ID: 1.75" x 120"
Max. Plate Thickness @130" ID: 2.5" x 60"

Equipped With:

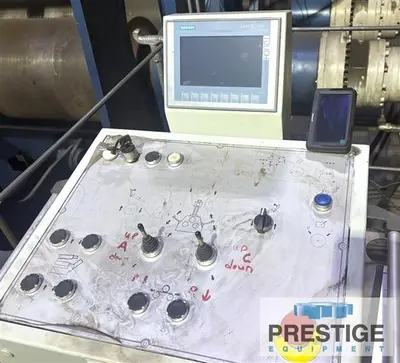

Operators Control Console On Wheels
(2) Electronic Digital Roll Position Readouts
Special Alloyed Rolls for high surface hardness plate processing.

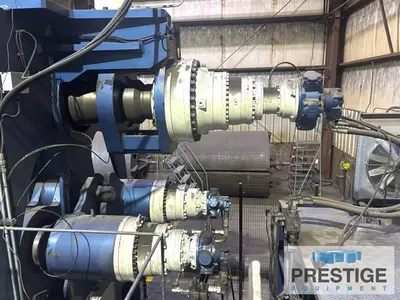

(3) Rolls independently motorized for maximum torque
Planetary system for side rolls movement
Electronic balancing system for the synchronization of rolls movement
Extra-large double shaft drop end

NOTE:
Inspect In Plant Under Power

Features:
3-Roll Planetary Design
Operators Control Console
Electronic Digital Roll Position Readouts
Special Alloyed Rolls
Independently motorized Rolls
