USED 2019 DOOSAN DNM5700
Overview

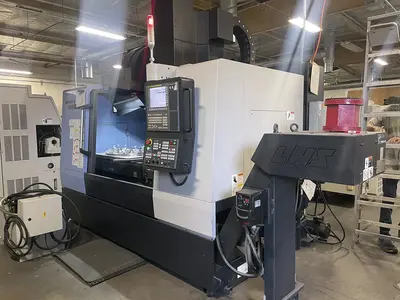

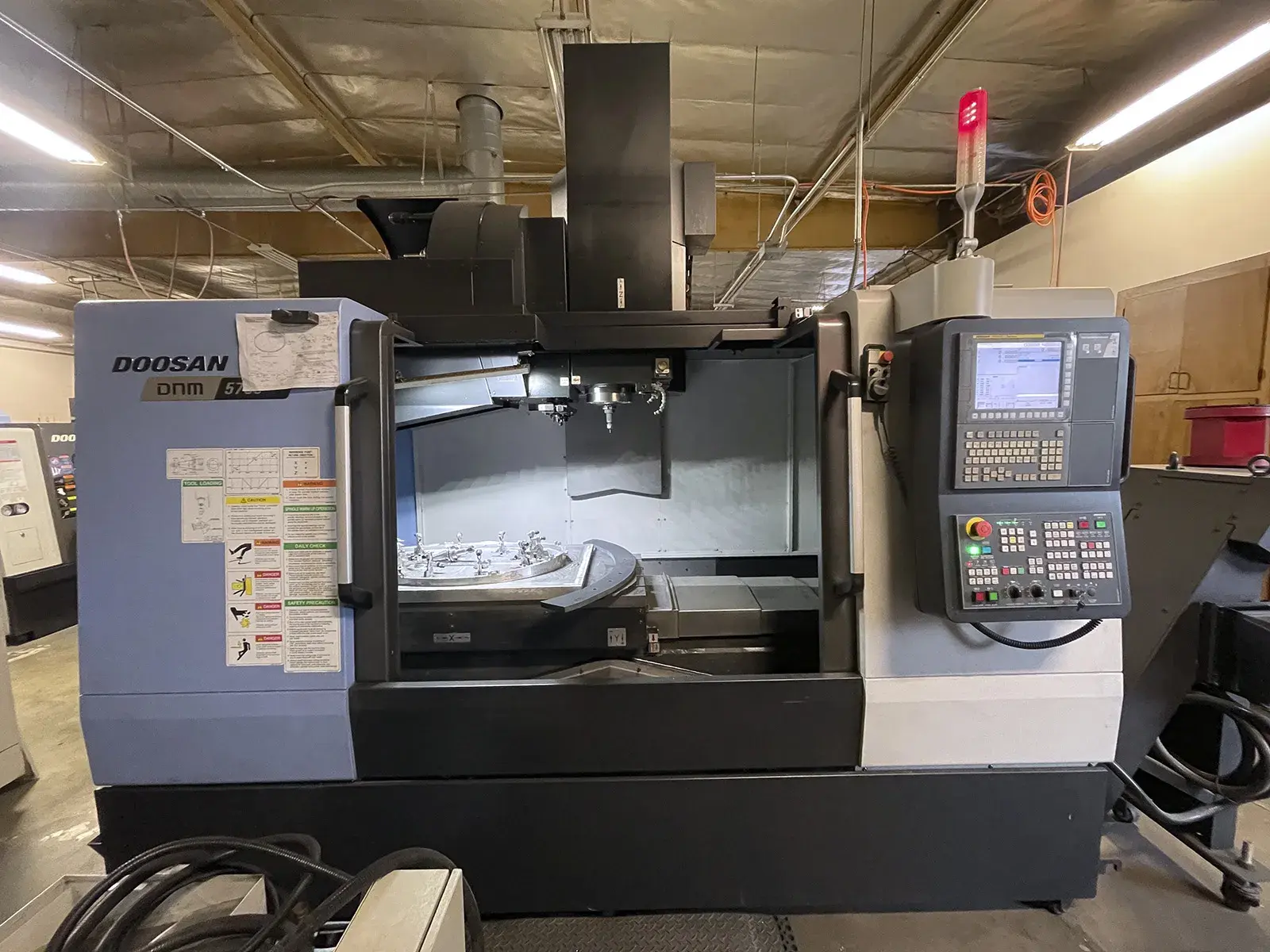

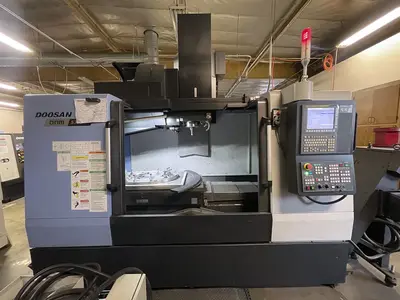

The Doosan DNM5700 (2019) is a high-speed CNC vertical machining center built for precision milling, drilling, tapping, and boring. Ideal for mold and die, job shop, automotive, and aerospace production, it efficiently machines structural parts, housings, engine components, brackets, and complex 3D surfaces.
Specs
X Travel: 41.3"
Y Travel: 22.4"
Z Travel: 20.1"
Spindle Nose to Table: 5.9–26.0"
Table Size: 51.2" × 22.4"
Maximum Table Load: 2,205 lb
T-Slots: 4
T-Slot Size: 4.9" × 0.7"
RAPID TRAVERSE (X, Y): 1,417 IPM
Z Rapid Traverse: 1,181 IPM
Max Cutting Feed: 590 IPM
X/Y rapid: 36 m/min
Z rapid: 30 m/min
Maximum Tool Length: 11.8"
Tool-to-Tool Change Time: Approximately 1.2 sec
Equipped With
Only 1047 Cutting Hours
Renishaw Probing System
30 Station ATC

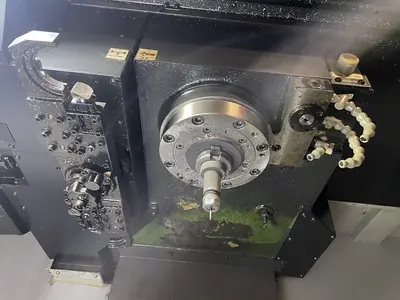

CT40 Big Plus Spindle
10000rpm Spindle Speed
Through Spindle Coolant

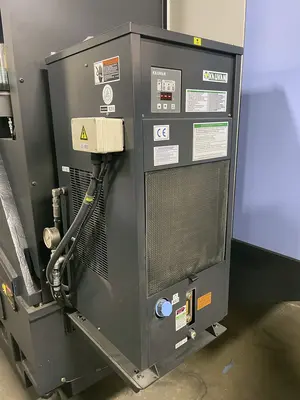

Kaukan Spindle Oil Chiller
Rigid Tapping
Remote Handwheel
Flood Coolant
Coolant Tank w/ Pump

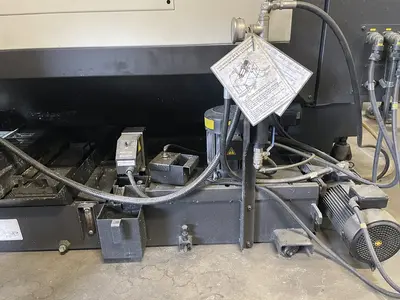

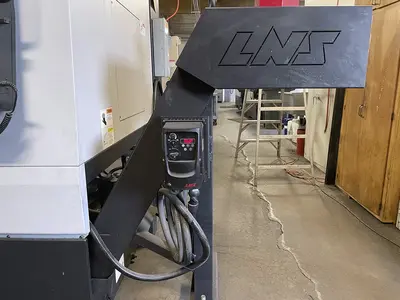

Chip Conveyor
