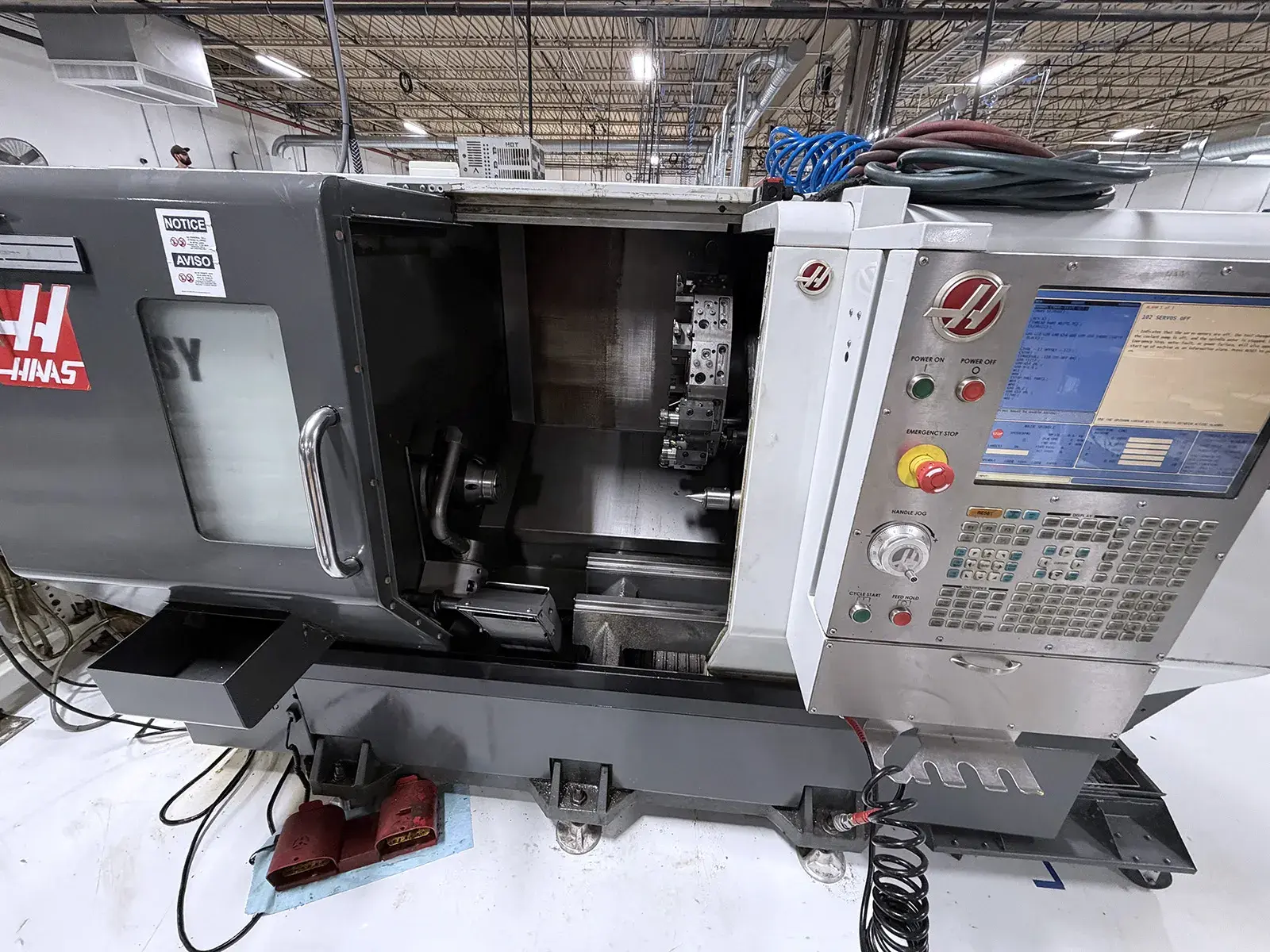

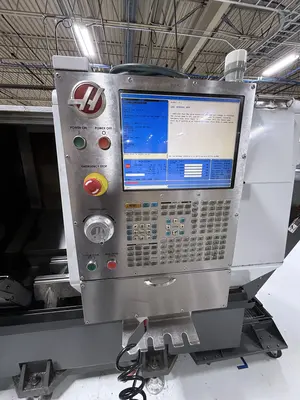

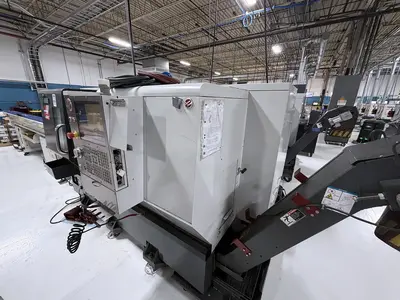

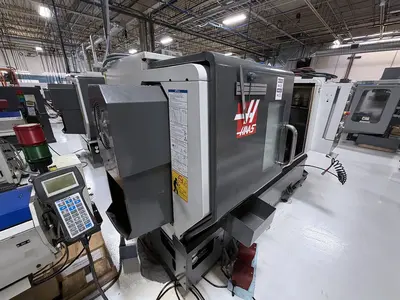

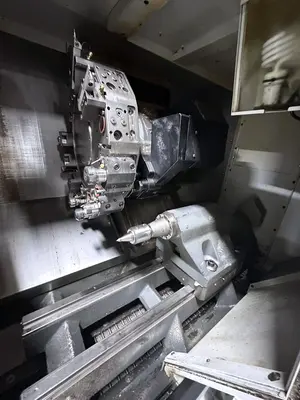

USED 2014 HAAS ST-20SSY
Overview
The Haas ST-20SSY (2014) is a high-performance CNC turn-mill lathe featuring Y-axis travel and live tooling for versatile, done-in-one machining. Designed for precision turning, boring, milling, and complex part production, it is ideal for aerospace, automotive, motorsports, and medical manufacturing applications.
Specs
24 Station Turret
8 inch Chuck
Collet Chuck
Live Tooling Included
Static Tooling Included
Tool Pre-setter
Tailstock
Parts Catcher
Hennig Chip Conveyor
Bar Liners
Jaws
Max Turning Diameter: 11.75 inch
Max Swing over Bed: 21.0 inch
Max Turning Length: 22.5 inch
Max Bar Capacity: 2.50 inch
X Axis Travel: 8.4 inch
Y Axis Travel: ± 2.0 inch
Z Axis Travel: 22.5 inch
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-6
Spindle Bore: 3.5 inch
Chuck Size: 8 inch
MAIN SPINDLE Max Speed: 5,000 RPM
Live Tooling Speed: Up to 6,000 RPM
Equipped With
24 Station Turret
8 inch Chuck
Collet Chuck
Live Tooling Included
Static Tooling Included
Tool Pre-setter
Tailstock
Parts Catcher
Hennig Chip Conveyor
Bar Liners
Jaws
