Mazak Nexus 250MSY-II – 2014

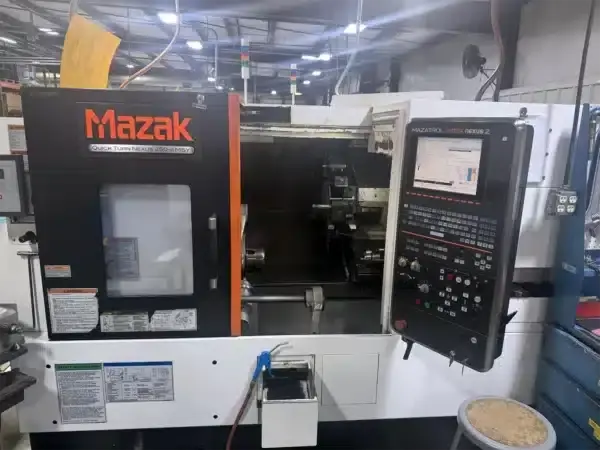

2014 Mazak Nexus 250MSYII Multi Spindle CNC Lathe
Specifications

X-Axis Travel: 9.0″

Y-Axis Travel: ±2.0″ (4.0″ Total)

Z-Axis Travel: 22.62″

Maximum Swing: 26.5″

Maximum Machining Diameter: 14.75″

Maximum Machining Length: 21.27″

(Main Spindle) Standard Chuck Size: 10″

(Main Spindle) Maximum Spindle Speed: 4,000 RPM

(Main Spindle) Spindle Motor: 35 HP (30-min rating) / 30 HP (Continuous)

(Main Spindle) Spindle Bore: 3.46″

(Main Spindle) Maximum Bar Capacity: 3.0″

(Sub-Spindle) Standard Chuck Size: 6″

(Sub-Spindle) Maximum Spindle Speed: 6,000 RPM

(Sub-Spindle) Spindle Motor: 10 HP

Number of Tool Stations: 12 (all positions capable of rotary tooling)

Rotary Tool Spindle Motor: 7.5 HP
Matrix Nexus II

Sub-Spindle

Y-Axis

4ft LNS Barfeed

Jorgenson Chip-Conveyor

Collet on Main Spindle

Chuck on Sub-Spindle

Parts Catcher

Tool touch Pre-setter
