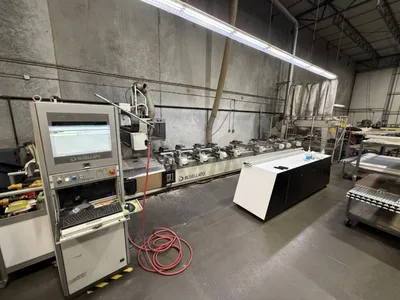

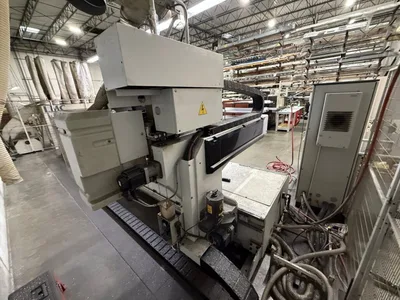

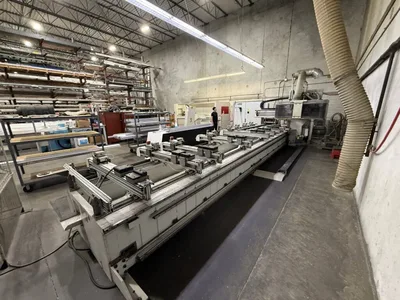

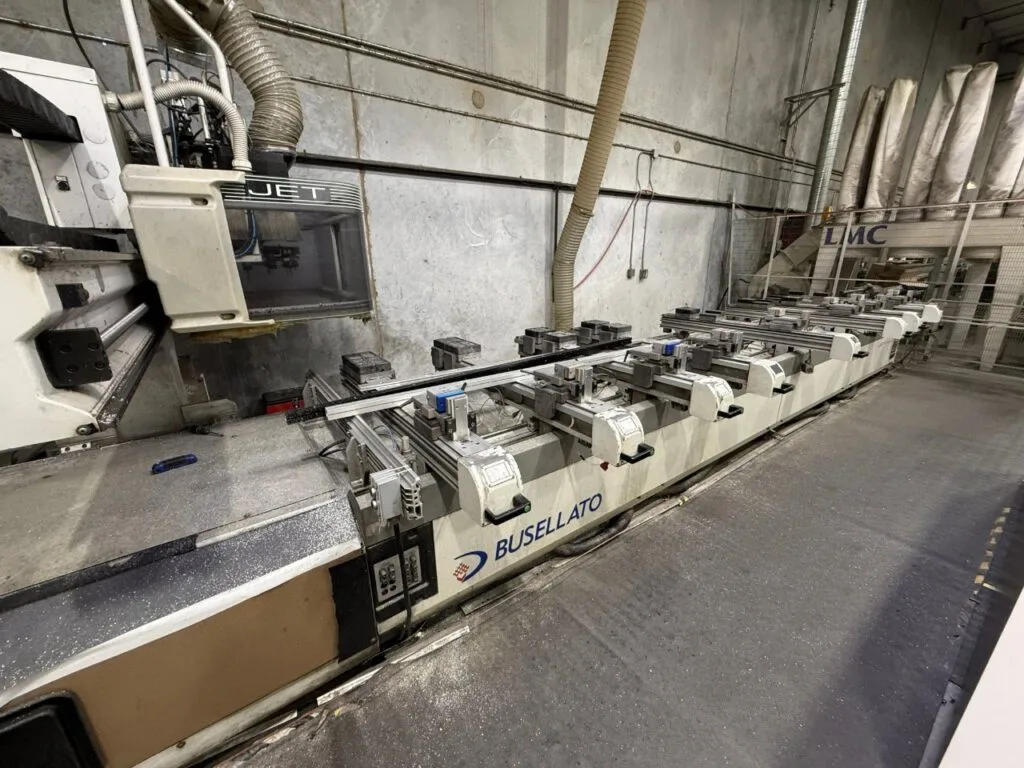

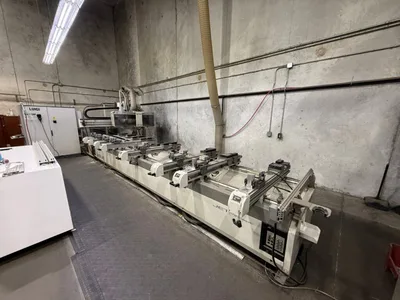

USED 2008 BUSELLATO JET CONCEPT XXL
Overview
Machine is under power and can be demoed upon request. This machine is currently in production and is due to be replaced. This machine is being sold from our client’s facility in GA.
Specs
X Axis: 236″
Router Table Length: 120.1″
Pod And Rail Table Length: 110.2″
Y Axis: 53″
Max Panel Thickness: 3.94″
Total X Axis Stroke: 256.4″
Total Y Axis Stroke: 63.8″
Total Z Axis Stroke: 8.1″
Max X Axis Positioning Speed: 70mt/min
Max Y Axis Positioning Speed: 50mt/min
Max Z Axis Positioning Speed: 15mt/min
Operating Pressure: 6 bar/90 PSI
Dust Hood Diamter: 250mm or 9.84252″
Dust Extraction: 3100 CFM
Air Fitting: 1/2″
Mft Panel Supports: 6
Boring Head: TFR27
Integrated Saw Unit: Yes
Spindles: 19 total w/ vertical outlets @ 32mm pitch
X Axis Spindles: 11
Y Axis Spindles: 8
Drilling Force: 65 Kg per spindle
Rotational Motor: 3 kW
Router Spindle: HSK F63 (16 HP)
Rotation Speed: 1000-18000 RPM
Tool Attachment: HSK F63 cone
Tool Position: 15 (rotary style)
Collet: ERG32
Unloading Table: 13′

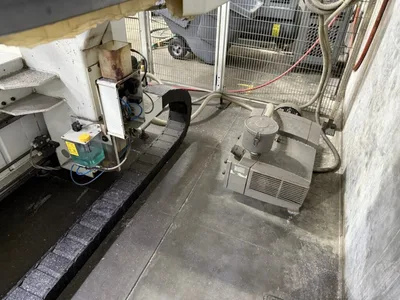

Pod & Rail Vacuum Pump: 100 m3/hr rotating vane pump
Main Vacuum Pump: 300 CFM / 20HP
Main Vacuum Pump Dimensions: 70″L x 30″W x 60″H
Voltage: 220/480/60/3PH
Equipped With

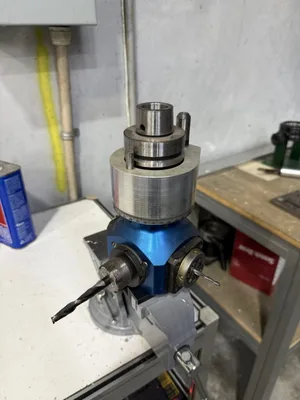

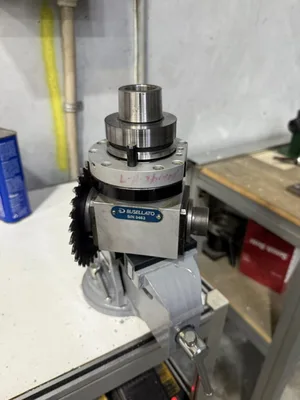

Dual Work Zones, Pod/Rail System, Plenum Table, Aggregate Head For 4Th Axis Machining, 2 Vacuum Pumps, Autolink Conversion Program And Bussellato Controller
