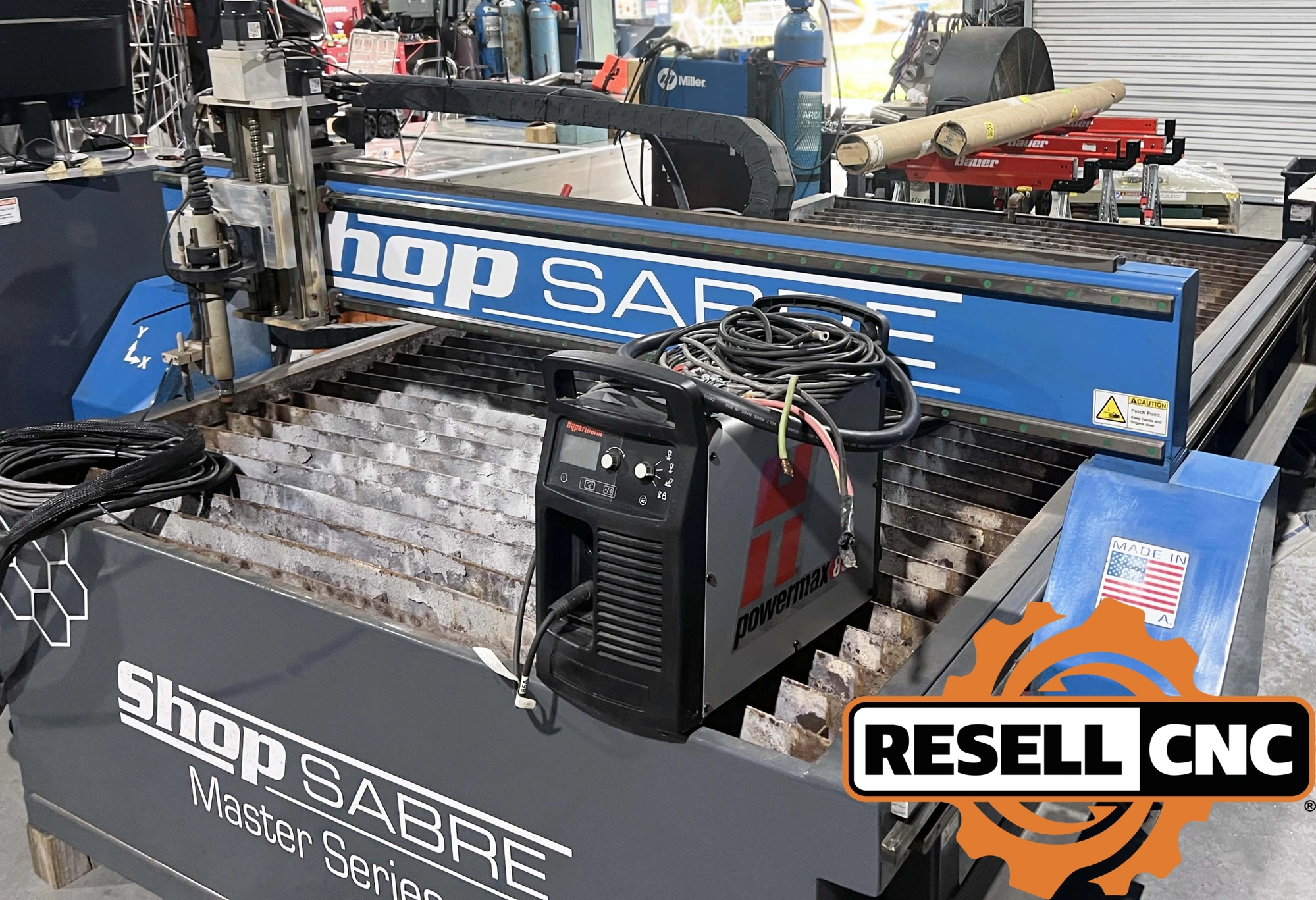

USED 2019 ShopSabre Shopmaster Series 8

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

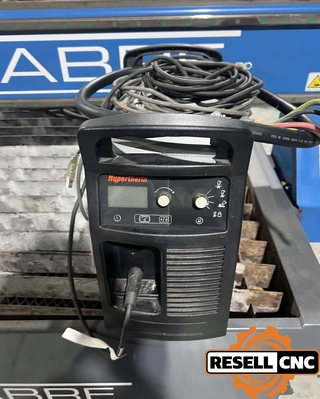

Additional Machine Specs: Hypertherm Powermax 85

Cutting Area: 52" x 98"

Table Footprint: 91" x 127" x 59"

Z Axis Clearance: 8"

Positional Repeatability: ±0.002"

Rapid Traverse Speed: Up to 2500 IPM

Cutting Capacity: Up to ~6" (Plasma Dependent)

Drive System: Direct-Drive Planetary Gear (X/Y), Ball Screw (Z)

Motors: AC digital closed-loop servo motors with encoders

Frame: Welded structural steel frame with tube steel gantry

Linear Motion: 25mm linear profile rails with bearings

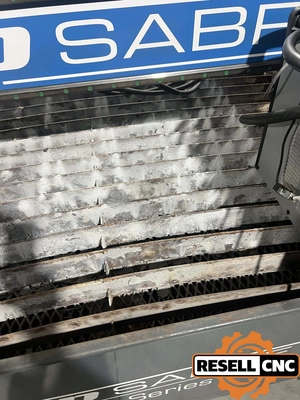

Table Type: 24" water table with air bladder (±6" adjustable)

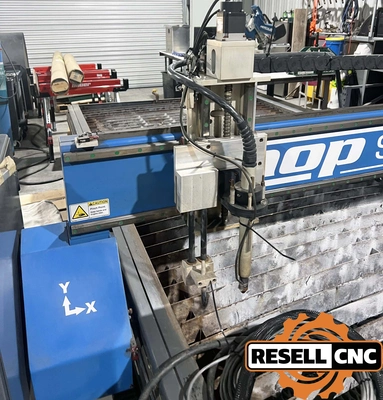

Torch Height Control: Digital THC with ohmic sensing and collision detection

B Axis: false
C Axis: false

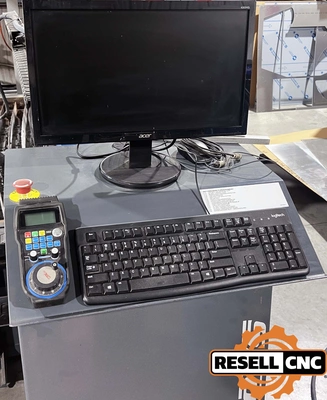

Control Make Model: ShopSabre Win CNC Controller
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
X Travel: 52.0
Y Axis: false
Y Travel: 98.0
Z Travel: 9.0
