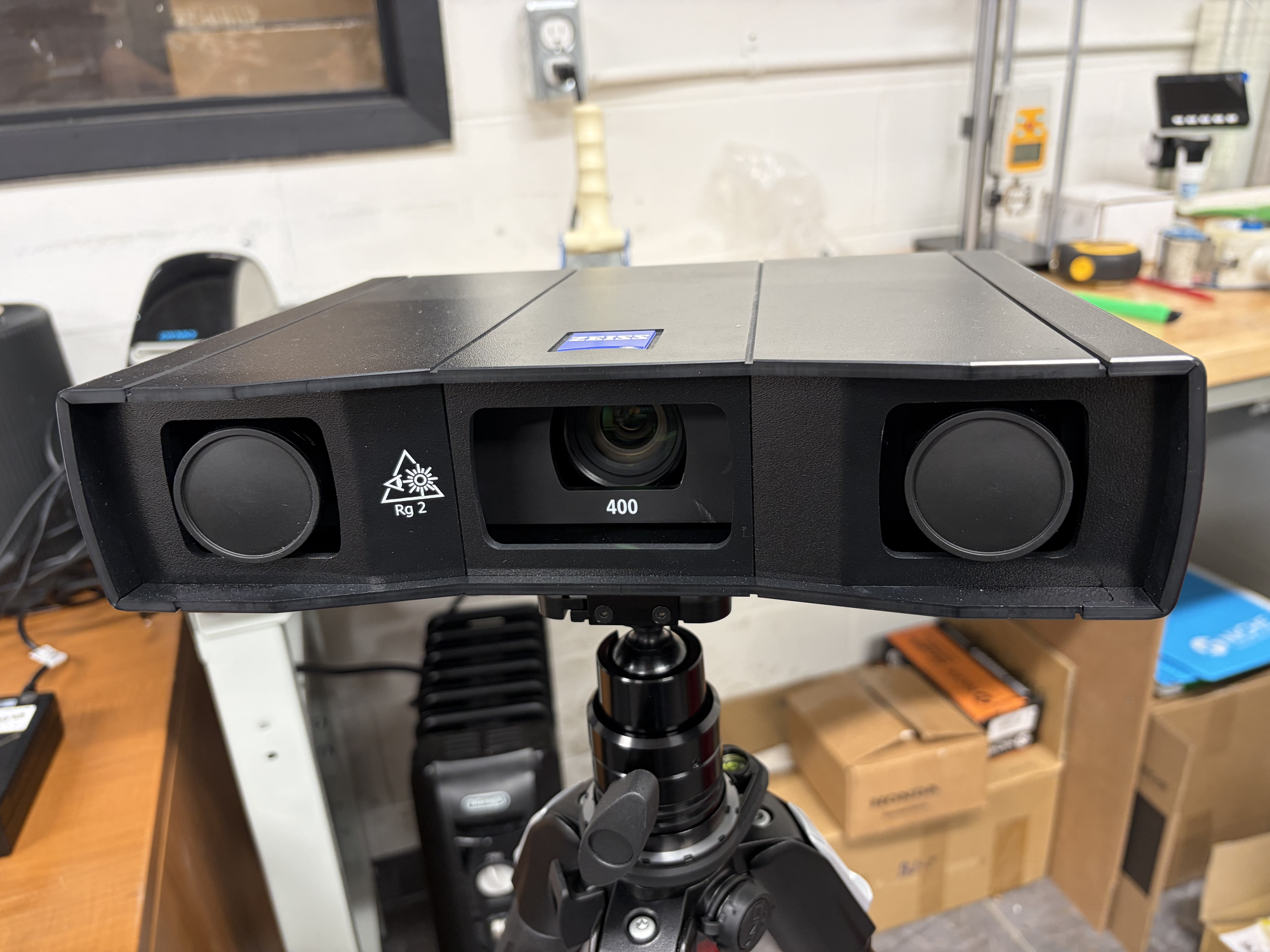

Zeiss GOM Scan 1 200 MV400 Portable Scanner (2023)
Overview
Zeiss GOM Scan 1 200 MV400 Portable Scanner (2023)
Specs
Zeiss GOM Scan 1 200 (MV400) Portable Scanner (2023)
Technical Specifications — ZEISS GOM Scan 1 (MV400)
Feature
Specification
Model ZEISS GOM Scan 1 200 (Measuring Volume: MV400)
Technology Stereo camera system with Narrow-Band Blue Light Fringe Projection
Measuring Volume$400 \times 250 \times 300 \text{ mm} Point Distance / Resolution0.129 \text{ mm}Points per Scan6 Million (6 MP dual sensors)
Working Distance
Approx. 00 \text{ mm}$ Light Source Narrowband Blue LED Standard Testing VDI/VDE 2634 Part 3Sensor Head
Weight Approx. 2.5 \text{ kg}5.5 \text{ lbs}
Dimensions (Sensor Head)$290 \times 215 \times 80 \text{ mm}$Interface /
Power USB 3.0 / 60W External PSU
