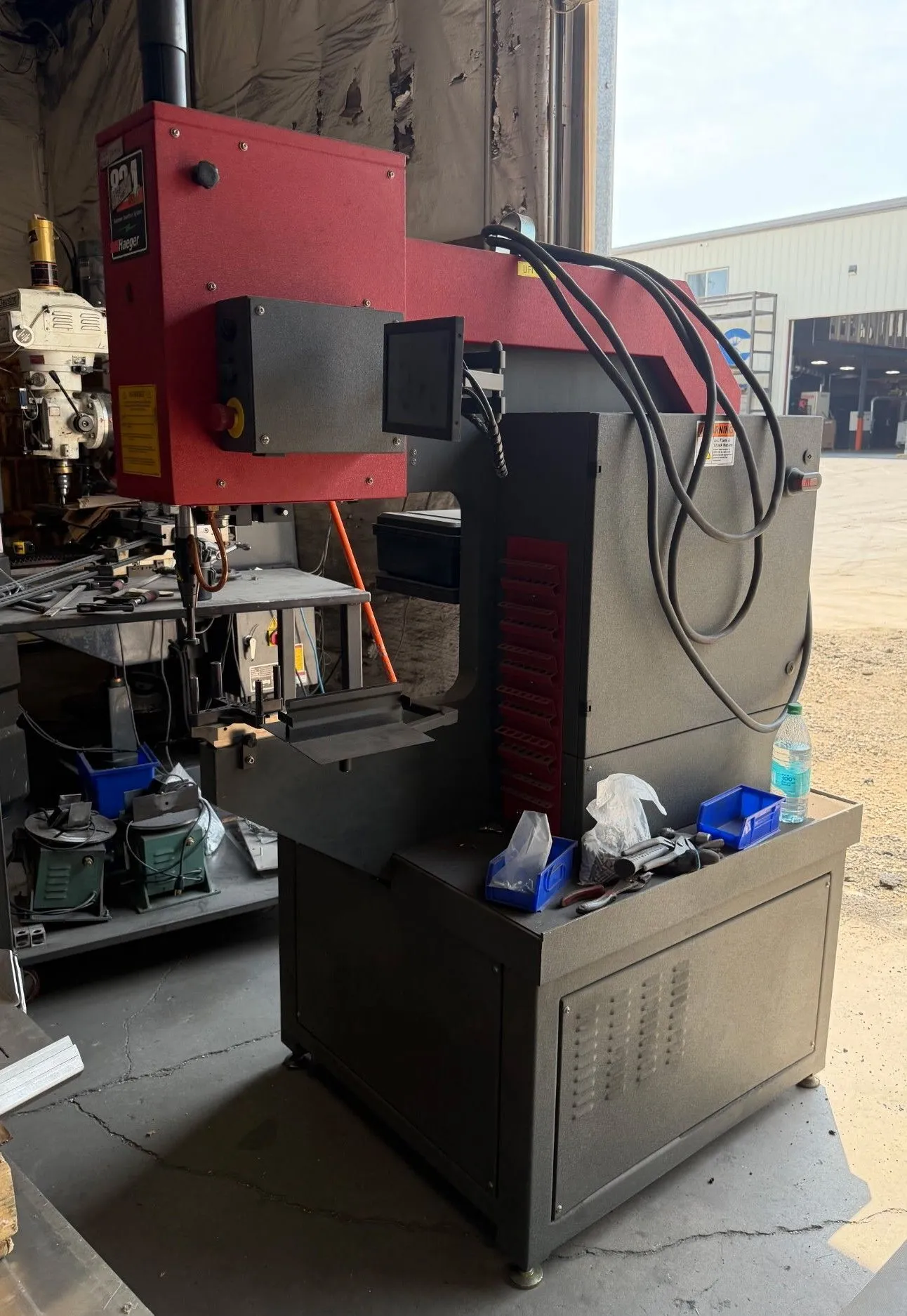

USED 2021 HAEGER 824MSP-Le
Overview
Get 8 tons of ram force, 24 inches of throat depth and adjustable ram retract positioning with the Haeger 824 MSP-Le. This fully hydraulic machine delivers reliability and energy efficiency, as well as Haeger's patented safety system, tooling protection system, and batch counter.
Specs
FASTENER RANGE: #2-56 TO ½” (M2 TO M12)
ADUSTABLE FORCE RANGE: 800 - 16,000 LBS
DRIVE SYSTEM TYPE: HYDRAULIC
INSERTIONS PER HOUR: UP TO 1,400
REPEATABILITY: (+/-) 2% OF FORCE SETTING
THROAT DEPTH: 24″
STROKE LENGTH: 0” - 8.5″
UP TRAVEL PRECENTAGE: 10 - 100
ELECTRICAL REQUIREMENTS: 3 PHASE LOW 16 A 208-240 V OR HIGH 9.6 A 380-480 V
AIR REQUIREMENTS: 90 TO 100 PSI (6 TO 7 BAR), 1/2″ DIA. MINIMUM LINE FLOW
OIL RESERVOIR CAPACITY: 22 GALLONS
APPROX. WEIGHT: 2,800 LBS (1,270 KG)
APPROX. DIMENSIONS: 60″(L) x 38″(W) x 97″(H)
Equipped With
INSERTION LOGIC CONTROL CENTER
10" SCREEN
REMOTE CONNECTION
FASTNER DATA BASE
