NEW 2026 HSG R1

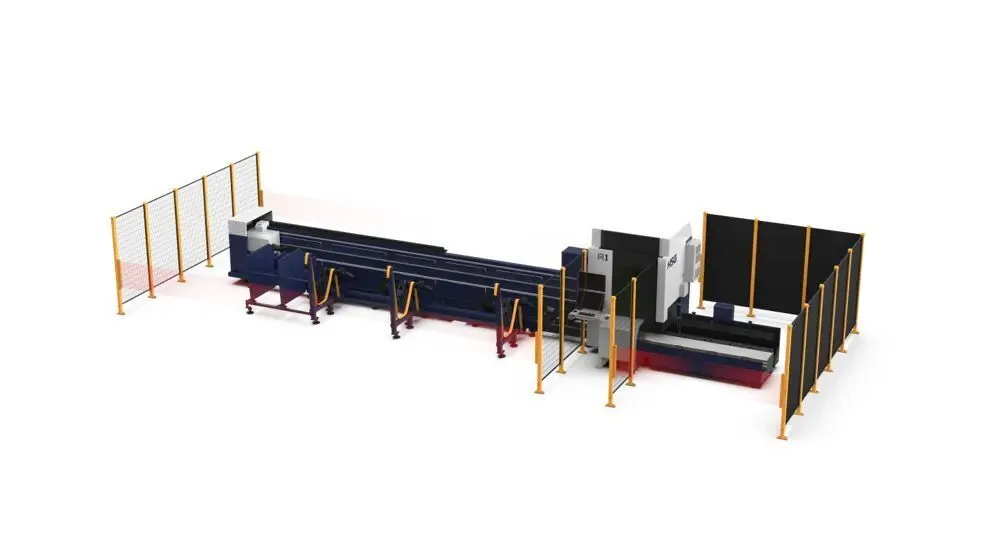

The HSG R1 is a compact, high-performance fiber laser tube cutting system designed for accurate, efficient processing of round, square, rectangular and structural profiles. This stock machine is equipped with a 3kW Raycus fiber laser source, HSG cutting head, HSG-X CNC control, automatic centering chucks, automatic tube loading, follow unloading and seam detection.
With automatic material handling, precision motion control and integrated nesting software, the R1 is well suited for production environments looking to increase throughput while reducing manual tube handling. The HSG-X control provides real-time machine monitoring, adjustable clamping force, batch processing and automatic fault diagnostics.

Key Specifications:
- Model: HSG R1
- Laser Power: 3kW
- Laser Source: Raycus
- Cutting Head: HSG
- Control: HSG-X CNC
- Automatic Centering Chucks
- Automatic Tube Loader: R1-AL65-A
- Follow Unloading System
- Seam Detection
- Tube Length Range: 1,000–6,500 mm
- Round Tube Capacity: Ø8–120 mm
- Square Tube Capacity: 8 × 8 to 120 × 120 mm
- Rectangular Tube: 8–120 mm per side
- Angle: 20 × 20 to 80 × 80 mm
- Channel: 50 × 37 to 80 × 43 mm
- I-Beam: 50 × 37 to 80 × 50 mm
- Maximum Tube Weight: Approx. 80 kg
- Chuck Speed: Up to 150 RPM
- Maximum Linkage Speed: 150 m/min
- Maximum Acceleration: 1.5G
- Positioning Accuracy: ±0.05 mm/m
- Repeatability: ±0.03 mm
- Automatic Loading System
- Round tube loading: 15–100 mm
- Square tube loading: 15–100 mm
- Rectangular tube: up to 100 mm per side
- Loading length: 4,800–6,500 mm
- Maximum individual tube weight: 50 kg
- Loader storage capacity: up to 1.5 tons

Included equipment includes water chiller, dust collector, transformer/voltage stabilizer, safety light barriers and laser AC enclosure.
