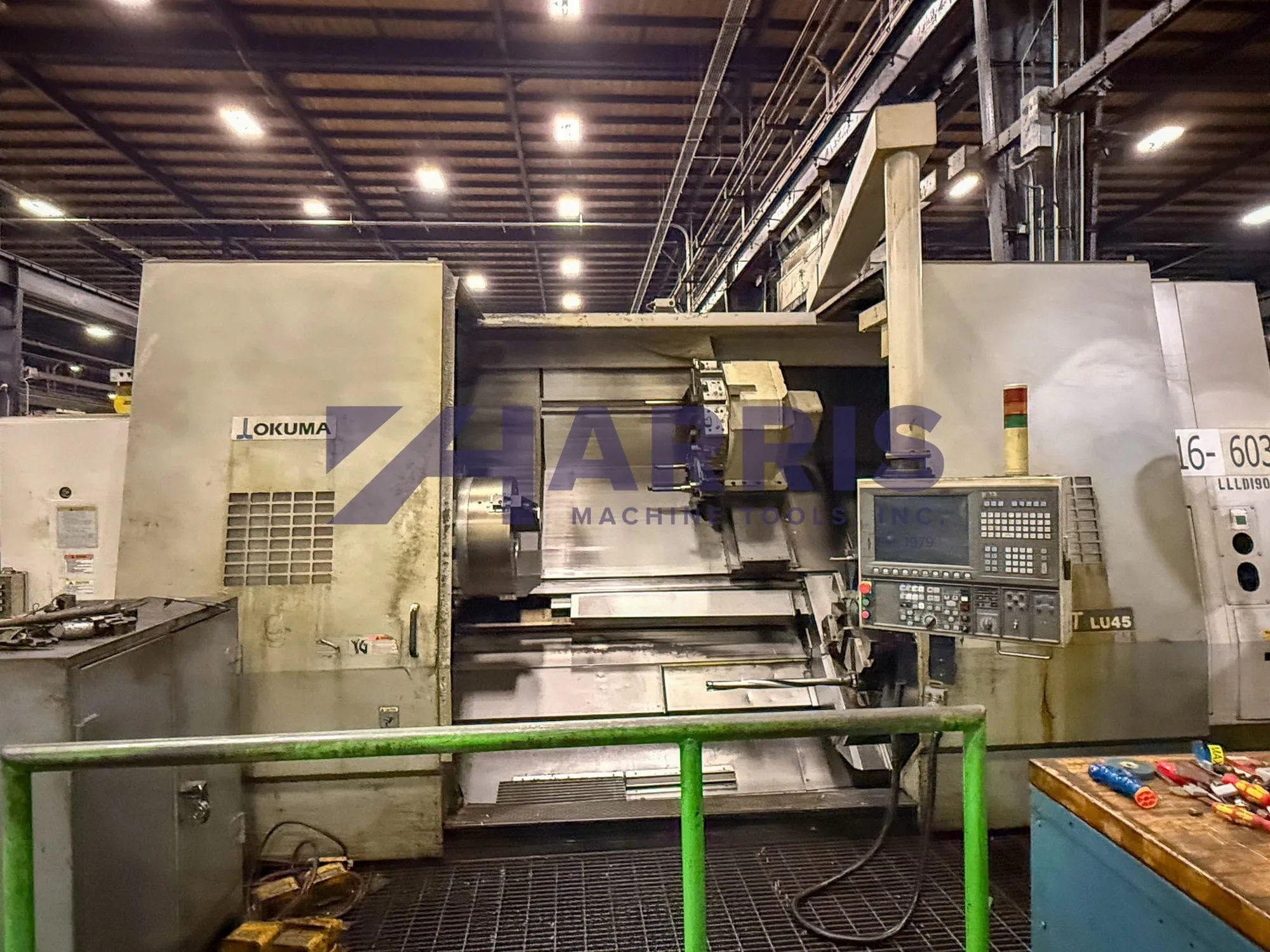

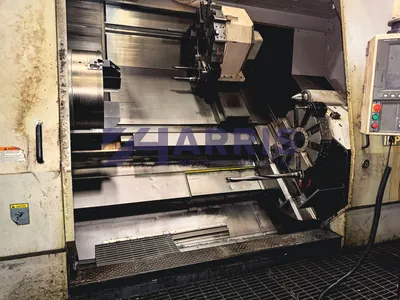

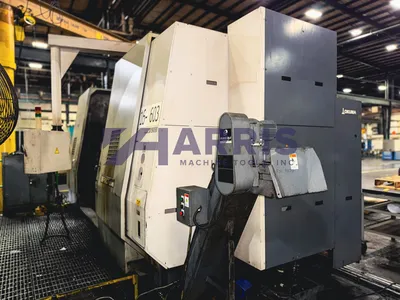

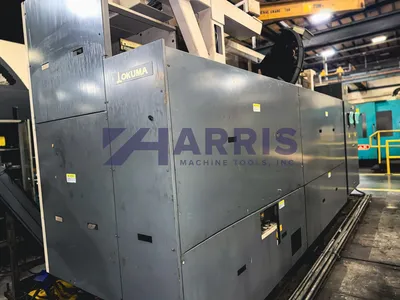

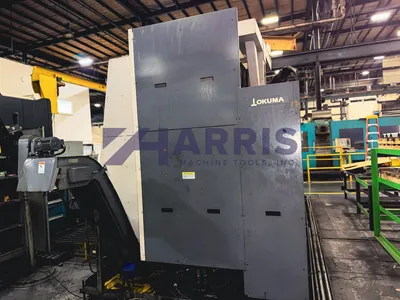

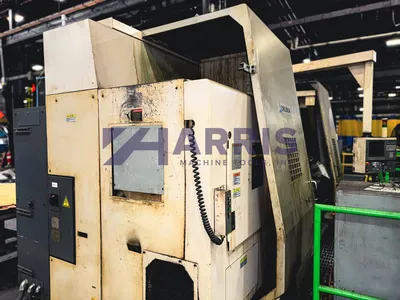

USED 2008 OKUMA IMPACT LU45

Capacity
Max Swing Over Bed: 33.0"
Max Turning Diameter: 22.0"
Max Turning Length: 78.7"
Distance Between Centers: 80"
Spindle Bore: 10.5"

Travels
X-Axis Travel: 11.8"
Z-Axis Travel: 80.0"
Rapid Traverse (X/Z): 393 / 196 IPM

Main Spindle
Chuck Size: 24"
Chuck Type: 3-Jaw Chuck
Bar Capacity: 10.5"
Spindle Bore: 10.75"
Spindle Nose: A2-11
Max Spindle Speed: 900 RPM
Main Motor: 50 HP
30-Min Motor Rating: 60 HP

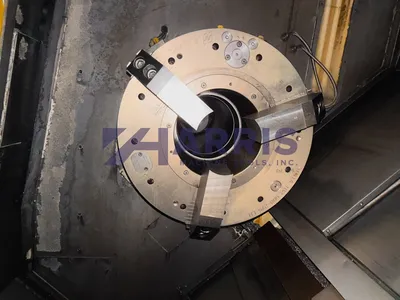

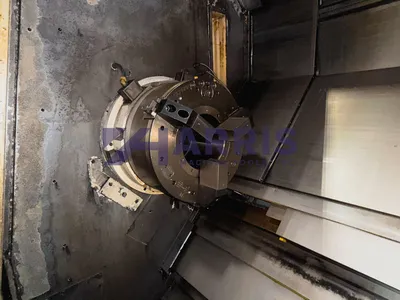

Chucks:
Front -
Chuck Size: 24"
Chuck Type: EXTRA LONG STROKE - Air
Through Bore: 10.75"
Jaw Stroke: 1.5"

Rear -
Chuck Size: 24"
Chuck Type: 4 Jaw Manual
Through Bore: 12.5"

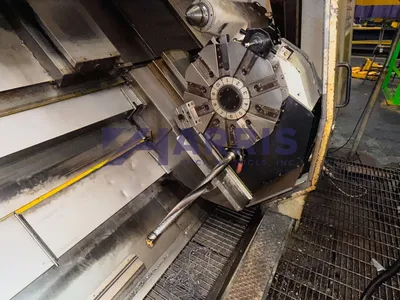

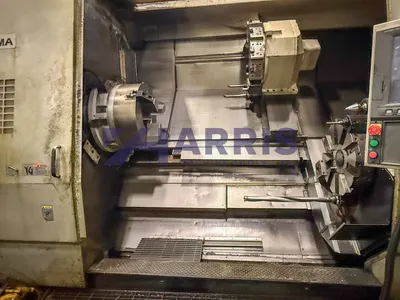

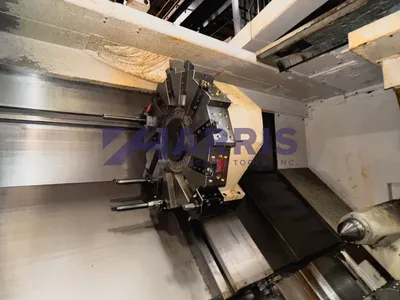

Turrets
Upper Turret: 12 Stations
Lower Turret: 10 Stations
Twin Turret Configuration: Equipped

Control

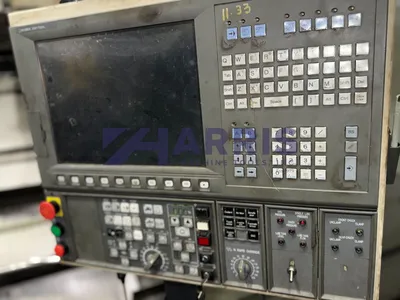

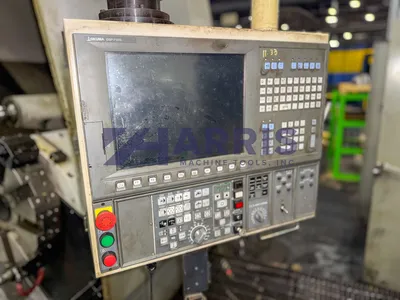

Control: Okuma OSP-P200L CNC
Additional Equipment

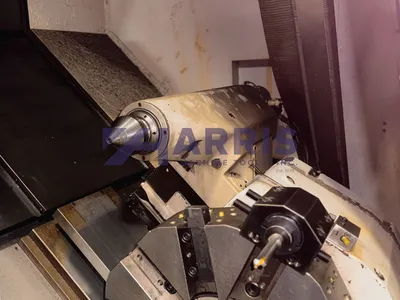

Tailstock
Enomoto Bea Chip Conveyor
Chip Conveyor System
Programmable Feed Rates: 0.00001 - 39.37 IPM

Machine: 139" L x 97" W x 125" H
Conveyor: 118" L x 61" W x 70" H
Weight: 42,000 lbs.
Pallet: 52" x 42" x 15" @ 1,000 lbs.
