Used

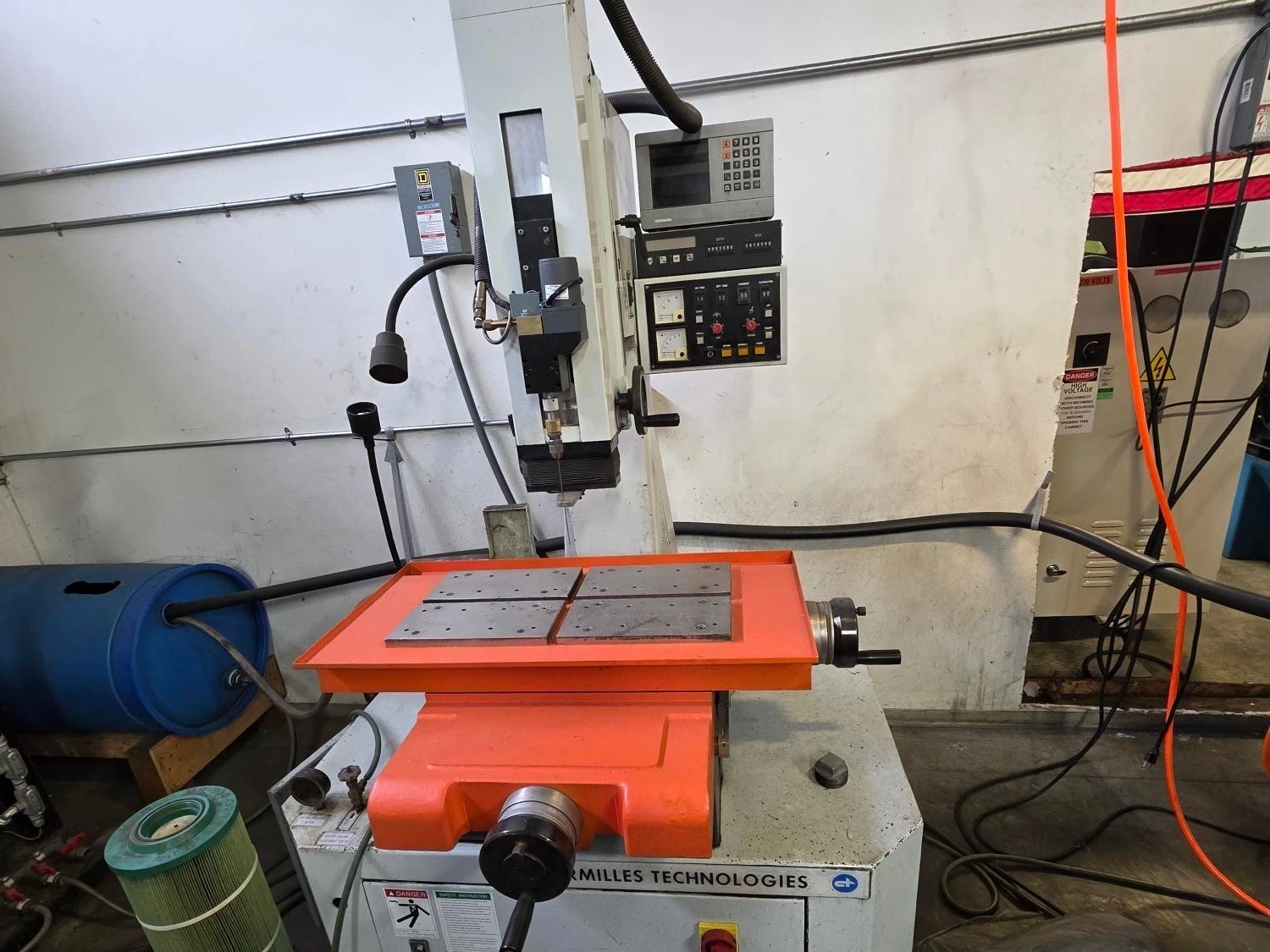

USED 1998 CHARMILLES HD8

Arizona, United States
59Listings|34Followers
Overview
EDM Hole-Driller

- Fast, versatile hole drilling — allows faster drilling of any hole; can be used for machine start holes, cooling holes, blind holes, or holes on inclined faces.
- Uses tubular electrodes that rotate during drilling, which improves flushing and hole quality
- Excels on hard materials, such as hardened steel and tungsten carbide
- Portable — easily moved with a pallet jack

Specs
Table Dimension Length
23.6 in
Table Dimension Width
11.8 in
Table Load Capacity
440 lb
X - Axis Travel
13.8"
350.52 mm
Y - Axis Travel
9.8"
248.92 mm
Z - Axis Travel
13.8"
350.52 mm
Guide Axis Travel
7.9 in
Hole-Dia. (Min)
0.02"
0.508 mm
Hole-Dia. (Max)
0.12"
3.048 mm
Power Supply
25 a
25 A
Dimensions
48" x 48" x 96" tall
48" x 48" x 96" tall
Weight
1800 lbs
1800 lbs
