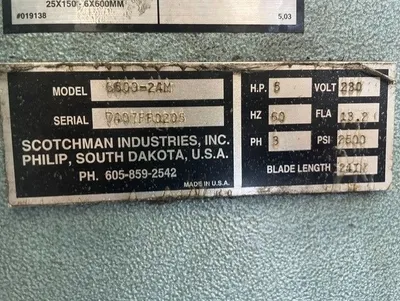

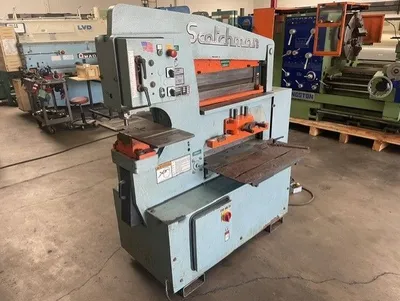

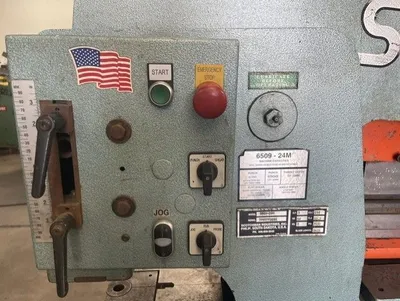

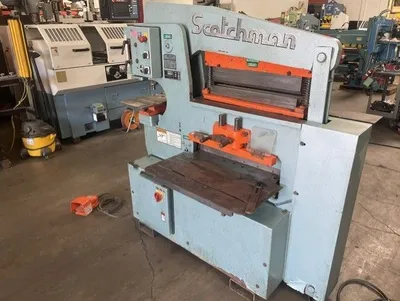

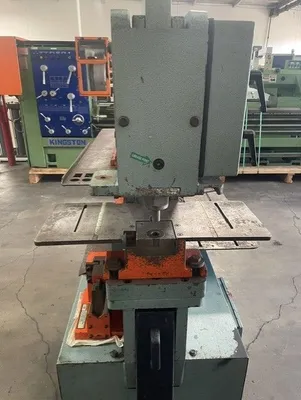

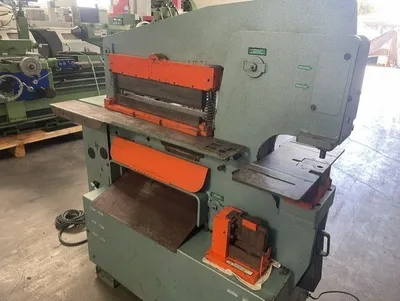

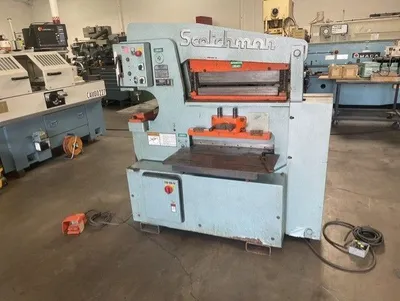

USED 2005 SCOTCHMAN 6509-24M

2005 SCOTCHMAN 6509-24M Hydraulic Ironworker #8343 #1

SPECIFICATIONS:
Punching Capacity: 65 Ton, 1 1/16″ in 3/4″
Special Tooling: 4″ Max. Diameter
Throat Depth: 9″

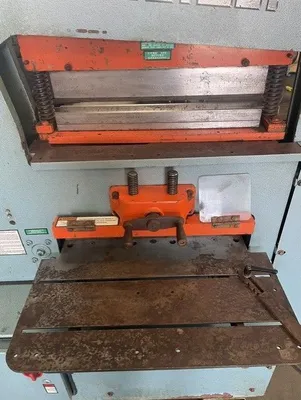

Flat Bar Shear: 24″ Length, 1″ x 6″, 3/4″ x 10″, 1/2″ x 12″, 3/8″ x 16″, 1/4″ x 24″
Angle Shear:
@ 90°: 6″ x 6″ x 3/8″, 5″ x 5″ x 1/2″
@ 45°: 3″ x 3″ x 3/8″, 4″ x 4″ x 1/2″ (with Bar Shear)
Brake: 12″ – 40 Ton, 24″ – 30 Ton
Open End Brake: Max. 1/4″ x 5″ Flat or Angle Iron
Pipe Notcher (Sch. 40 I.D.): 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
Rectangle Notcher: 2″ x 2 1/2″ x 3/8″
90° V Notcher: 6″ x 6″ x 5/16″
Channel Shear: 2″ – 5″ (Adjustable)
Rod Shear:
Round Rod: 1/4″ – 1 1/4″, 9 Cav.
Square Rod: 1/4″ – 1″, 1 Cav.
Square Tube Shear: 1/2″ – 2″, 12 Gauge
Picket Tool: 1/2″, 3/4″, 1″, 16 Gauge
Offset Die Holder: Max. 40 Ton
Strokes per Minute:
Light Material: 1/4″ Stroke
Heavy Material: 3/4″ Stroke
Hydraulics: 2,600 PSI
Motor: 5 HP / 220v / 1ph
