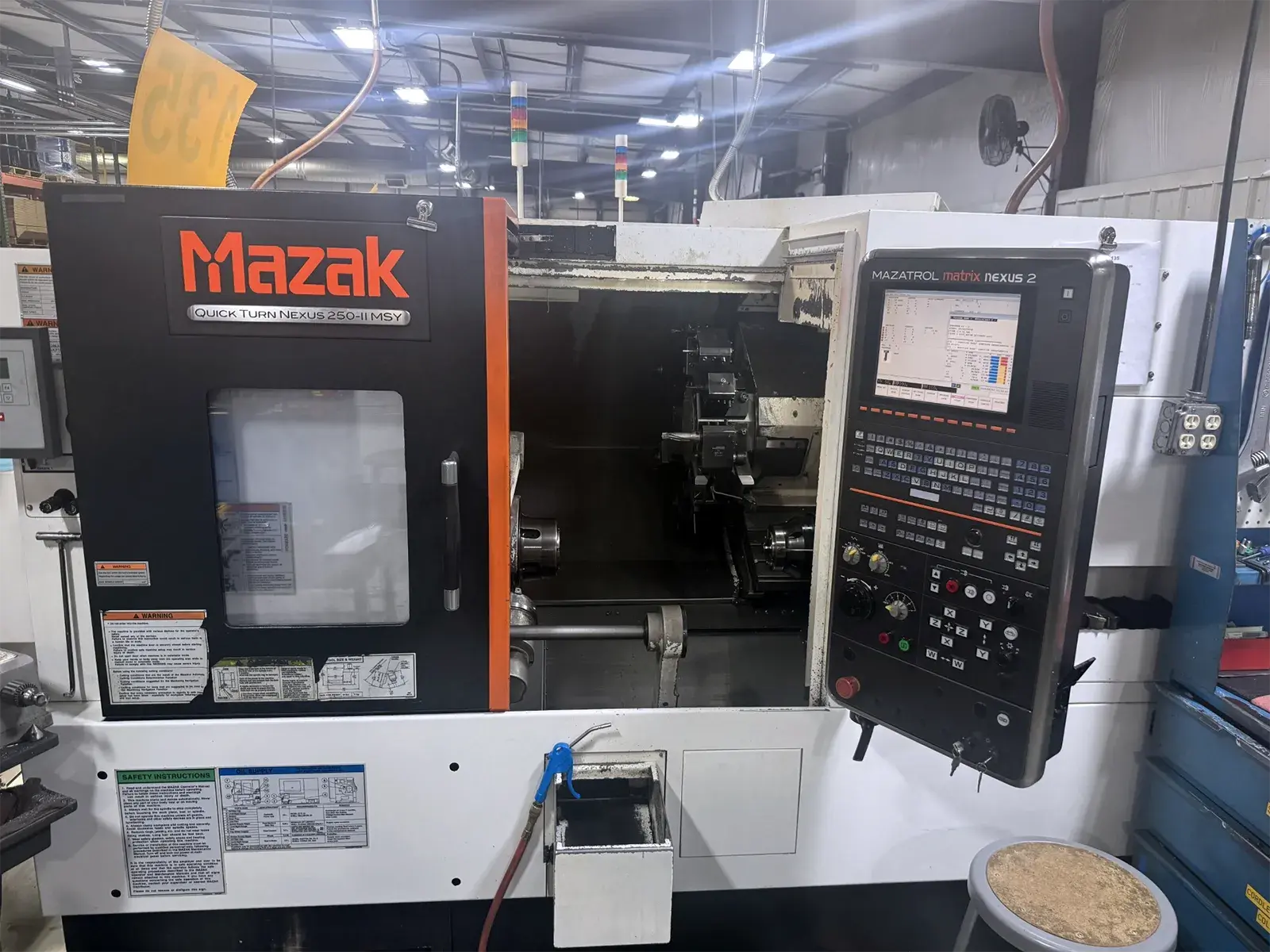

USED 2014 Mazak QTN 250MSY II
Overview
The 2014 Mazak QTN 250MSY is a high-precision multi-tasking CNC turning center equipped with Mazatrol Matrix Nexus II control. Designed for done-in-one machining, it combines turning, milling, secondary spindle, and off-center operations for complex metal parts. Ideal for aerospace, automotive, medical, oil & gas, hydraulics, and precision job shops.
Specs
X-Axis Travel: 9.0"
Y-Axis Travel: ±2.0" (4.0" Total)
Z-Axis Travel: 22.62"
Maximum Swing : 26.5"
Maximum Machining Diameter: 14.75"
Maximum Machining Length: 21.27"
(Main Spindle) Standard Chuck Size: 10"
(Main Spindle) Maximum Spindle Speed: 4,000 RPM
(Main Spindle) Spindle Motor: 35 HP (30-min rating) / 30 HP (Continuous)
(Main Spindle) Spindle Bore: 3.46"
(Main Spindle) Maximum Bar Capacity: 3.0"
(Sub-Spindle) Standard Chuck Size: 6"
(Sub-Spindle) Maximum Spindle Speed: 6,000 RPM
(Sub-Spindle) Spindle Motor: 10 HP
Number of Tool Stations: 12 (all positions capable of rotary tooling)
Rotary Tool Spindle Motor: 7.5 HP
Equipped With

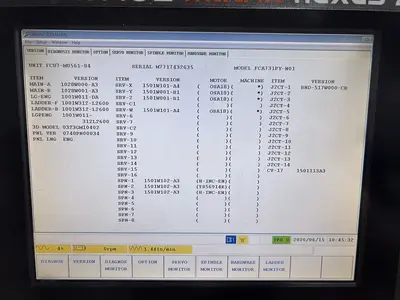

Matrix Nexus II
Sub-Spindle
Y-Axis
4ft LNS Barfeed
Jorgenson Chip-Conveyor
Collet on Main Spindle
Chuck on Sub-Spindle
Parts Catcher
Tool touch Pre-setter
