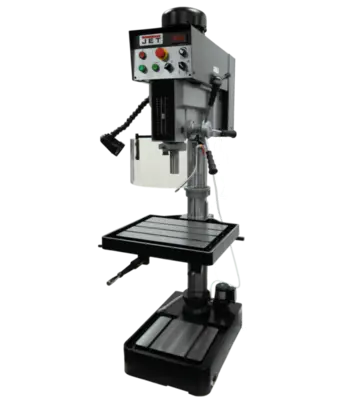

NEW JET JDP-20EVST-230
Overview
Features:
CSA Coolant System
Front Mounted LED Spindle RPM Readout
Front mounted positive control depth stop
Heavy-duty steel column for increased precision and rigidity
High torque at all speeds both forward and reverse
Large Hand Grips designed with the users comfort in mind
Large precision ground T-Slot production table for easy set ups
Latest AC Inverter Variable Speed Technology
Specs
Weight: 792 lbs
Dimensions: 38.18 × 27.16 × 79.52 in
Base Dimensions: 27" x 19"
Column Diameter: 4-1/2
Distance Column to Spindle: 10-7/16
Drilling Capacity Cast Iron: 1-1/2
Drilling Capacity Mild Steel: 1-3/8
Drills to Center of Circle: Inch
Motor (HP): 2 HP, 230V 3ph
Range of Spindle Speeds: 65-540 /245- 2,000
Spindle Distance to Base: 44-1/2
Spindle Distance to Table (Max.): 30-1/4
Spindle Taper: MT-3
Spindle Travel: 6
Style (Type): Variable Speed
Table Size (L x W): 22×18-3/4
Table Travel: 20
Tapping Capacity Cast Iron: 7/8
Tapping Capacity Mild Steel: 3/4
T-Slot Centers: 7-7/16
Weight: 792
Work Table Weight Capacity: 154
