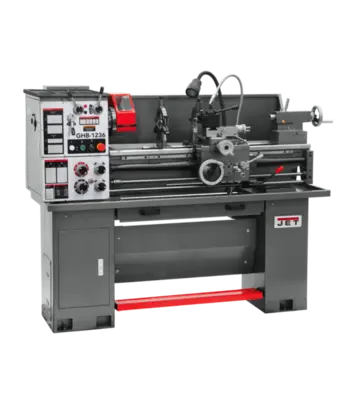

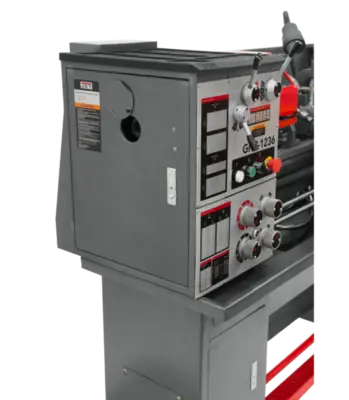

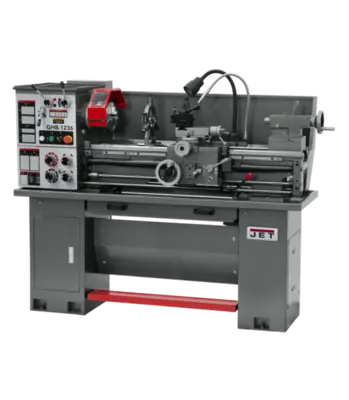

NEW JET GHB-1236
Overview
Features:
Compound and cross slide have backlash adjustment
Emergency stop within easy reach of the Operator
Enclosed gearbox design provides smooth, quiet operation
Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
Induction hardened and ground bedway
Mounted on stand with foot pedal, coolant and ready to use
Spindle Spider available for ease of turning Gun barrels
Steady Rest with Roller Bearings
Tailstock may be offset for turning taper
Specs
Weight: 1210 lbs
Dimensions: 66 × 30 × 58 in
Carriage Travel: 27-3/8
Compound Slide Travel: 3
Length of Gap: 8-3/4
Max Tool Size: 3/4 x 3/4
Motor (HP): 2HP, 230V, Single Phase
Number of Inch Threads: 36
Longitudinal and CrossRates: 48/36
Number of Metric Threads: 32
Number of Spindle Speeds: 9
Range of Cross Feeds (IPR): 0.0014 – 0.0116
Range of Inch Threads (TPI): 4-60
Range of Longitudinal: 0.0019 – 0.0472
Range of Metric Threads: 0.4-7mm
Range of Spindle Speeds: 75 – 1400
Spindle Bore: 1.575
Spindle Mount: D1-4
Spindle Taper with Sleeve: MT-5
Steady Rest Capacity: 0.31-2.95
Swing Over Bed: 12
Swing Over Cross Slide: 7-1/2
Swing Through Gap: 18
Tailstock Spindle Travel: 3-1/2
Taper in Tailstock Spindle: MT-3
Weight: 1210
Width of Bed: 7.12
