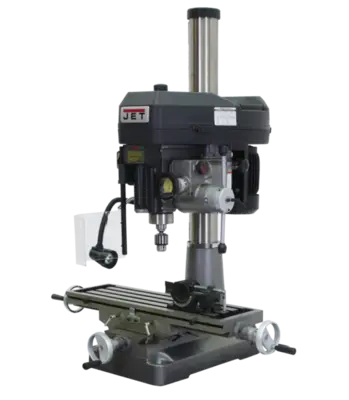

NEW JET JMD-18PFNA
Overview
Features:
1/2” Drill chuck, chuck arbor
360° head swivel
Adjustable carbide facemill
Base taper allows for easier clean up
Easy to read internal depth gauge
Heavy-duty power downfeed with manual feed (JMD-18PFN)
Mill Drill Stand, p/n 320020, shown in some images, is optional
One-piece cast iron column for added support
Positive quick-stop knob and easy to read internal depth gauge
UL Listed
Specs
Weight: 700 lbs
Dimensions: 56 × 66 × 73 in
Base Dimensions: 15-3/4 x 23-3/4
Column Diameter: 4-1/2
Face Mill Capacity: Inch
Max Distance Spindle to Table: 28
Motor (HP): 2 HP,115/230V, 1 Ph, Prewired 115V
Number of Spindle Speeds: 12
Powerfeed: X-Axis
Quill Diameter: 3"
Quill Down Feed Rates (IPR): 0.0047, 0.007, 0.001
Range of Spindle Speeds: 150 – 3,000
Spindle Taper: R-8
Spindle Travel: 5
Swing: 15-7/8
Table Size (L x W): 9-1/2 x 32-1/4
T-Slots Number and Size: 4 and 5/8
T-Slot Centers: 1-13/16
Weight: 700
Work Table Weight Capacity: 400
