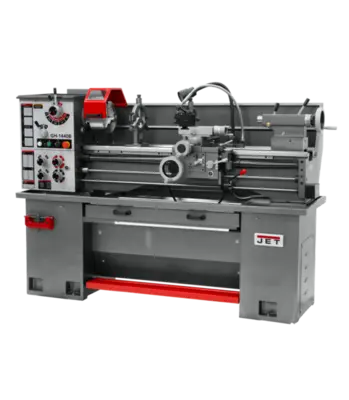

NEW JET GH-1440B
Overview
Features:
Compound and cross slide have backlash adjustment
Emergency stop within easy reach of the Operator
Enclosed gearbox design provides smooth, quiet operation
Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
Spindle Spider available for ease of turning Gun barrels
Standard Accessories
Steady Rest with Roller Bearings
Tailstock may be offset for turning taper
Specs
Weight: 1753 lbs
Dimensions: 76 × 30 × 60 in
Carriage Travel: 37-2/5
Compound Slide Travel: 3-1/2
Cross Slide Travel: Inch
Length of Gap: 8
Max Tool Size: 4/5 x 4/5
Motor (HP): 2 HP, 230V, Single Phase
Number of Inch Threads: 34
Longitudinal and CrossRates: 32/32
Number of Metric Threads: 26
Number of Spindle Speeds: 8
Range of Cross Feeds (IPR): 0.007 -0.0187
Range of Inch Threads (TPI): 4-56
Range of Longitudinal: 0.002 -0.0548
Range of Metric Threads: 0.4-7
Range of Spindle Speeds: 70-1900
Spindle Bore: 2
Spindle Mount: D1-5
Spindle Taper with Sleeve: MT6
Steady Rest Capacity: 0.31-2.95
Swing Over Bed: 14"
Swing Over Cross Slide: 8
Swing Through Gap: 20
Tailstock Spindle Travel: 4
Taper in Tailstock Spindle: MT4
Weight: 1753
Width of Bed: 7.32
