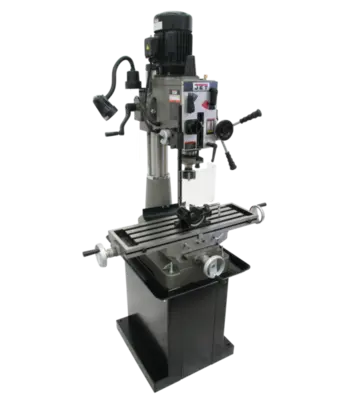

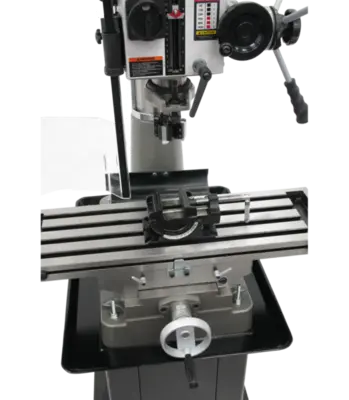

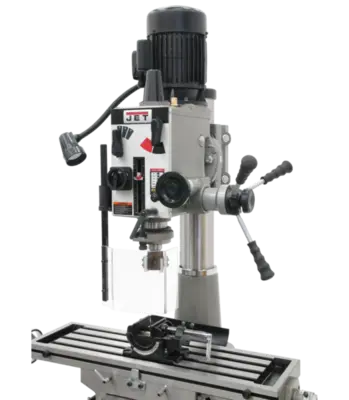

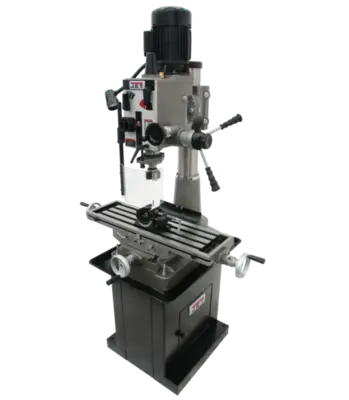

NEW JET JMD-40GH
Overview
Features:
Calibrated fine down feed built in
CSA/CUS Certified
Easy to read internal depth gauge
Full power to the cutting tools through 6 speed geared head
Heavy-duty design allows for a variety of precision drilling applications

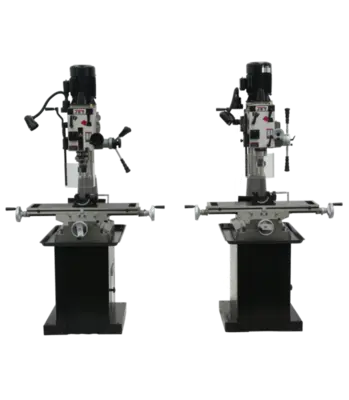

Mill Drill Stand, p/n 350045, shown in some images, is optional
Milling table allows for movement
R8 spindle allows use of all mill tooling
Rapid spindle speed changes through quick-select gear shift levers
Specs
Weight: 694 lbs
Dimensions: 28 × 39.25 × 42.5 in
Base Dimensions: 24-1/4 x 15-15/16
Column Diameter: 4-1/2
Face Mill Capacity: Inch
Max Distance Spindle to Table: 15-3/4
Motor (HP): 1-1/2HP, 115/230V, 1Ph
Number of Spindle Speeds: 6
Quill Diameter: 3"
Range of Spindle Speeds: 65, 130, 220, 480, 925, 1550rpm
Spindle Taper: R-8
Spindle Travel: 5
Swing: 20-1/2
Weight: 694
