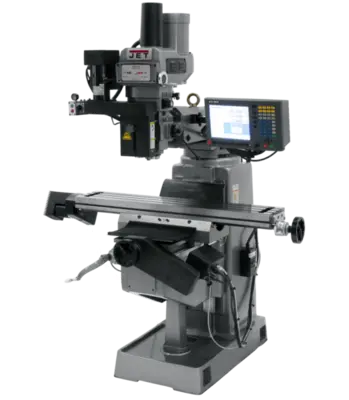

NEW JET JTM-949EVS/230
Overview
Features:
Adjustable gibs throughout
Class 7 bearings support the spindle for maximum rigidity in heavy cutting applications
Dual locks on all moveable surfaces
Heavy-duty spindle brake
Internal coolant tank built into casting base
Precision bored and honed milling head
Precision hardened and ground ways and table
Quick spindle feed nut easily adjusts to different depths
Three-stage power downfeed with automatic stop
Two 115V outlets on electrical box for DRO or powerfeeds
Specs
Weight: 2420 lbs
Dimensions: 66 × 63 × 86 in
CNC Package: ACU-RITE MILLPWR® G2
Collet Capacity: 1/8 – 7/8
Column Width: 18
Inverter Type: Delta, B
Max Distance Spindle to Table: 20-3/4
Motor (HP): 3HP, 230V, 3Ph
Number of Axis: 2
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 – .003 – .006
Range of Spindle Speeds: 60 – 4,500
Saddle Width: 11-1/2
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): CNC
Table Cross Travel: 12-5/8
Table Longitudinal Travel: 30-3/4
Table Size (L x W): 9 x 49
Travel of Knee: 15-3/4
Travel of Ram: 15-1/4
T-Slot Centers: 2-1/2
Weight: 2420
Work Table Weight Capacity: 720
