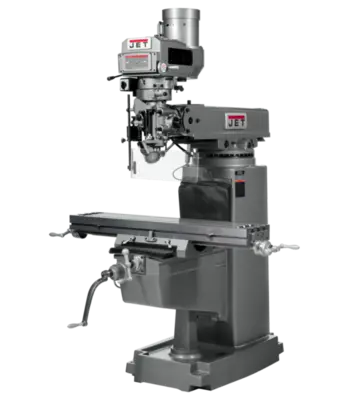

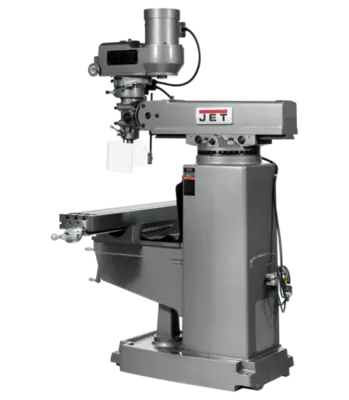

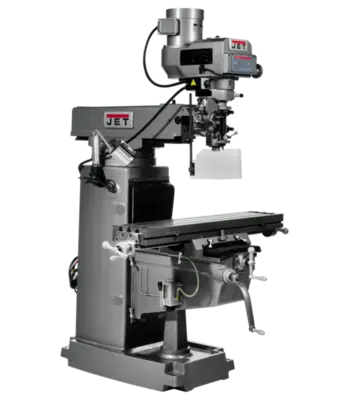

NEW JET JTM-1050/ACU-R
Overview
Features:
Adjustable gibs throughout
Chrome lead screws on X and Y axis
Chrome-plated motor shaft with bearing support at end
Hardened and ground square vertical knee ways and cross ways
Heavy duty motor drive
Internal coolant tank built into base for use with coolant system (Coolant pump not included)
Large Diameter quill is chromed
One shot lubrication system
Spindle head is internally cooled
Tolerance test sheet included
Specs
Weight: 2900 lbs
Dimensions: 78 × 78 × 75 in
Collet Capacity: 1/8 – 7/8
Max Distance Spindle to Table: 19
Motor (HP): 3 HP, 230/460V, 3Ph
Number of Axis: 2
Powerfeed: X-Axis
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 – .003 – .006
Range of Spindle Speeds: 70 – 3,800
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): Variable Speed R8
Table Cross Travel: 15-1/4
Table Longitudinal Travel: 29-3/4
Table Size (L x W): 10 x 50
Travel of Knee: 14-1/4
Travel of Ram: 20-1/2
T-Slot Centers: 2-1/2
Weight: 2900
Work Table Weight Capacity: 720
