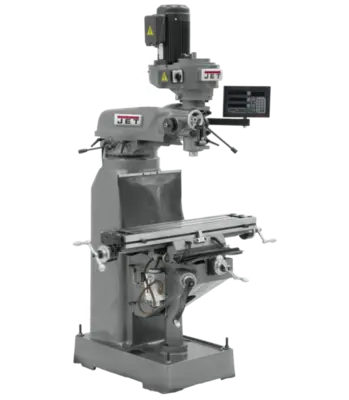

NEW JET JVM-836-1W/AC
Overview
Features:
Graduated scale on column
Hardened and ground precision table
Head tilts left or right
High precision spindle bearings
Large Diameter quill is chromed
One shot lubrication system
Precision bored and honed milling head
Precision ground dovetail ways
Specs
Weight: 1617 lbs
Dimensions: 66 × 56 × 67 in
Collet Capacity: 1/8 – 7/8
Max Distance Spindle to Table: 13-3/4
Motor (HP): 1-1/2 HP, 115/230V, 1Ph
Number of Axis: 2
Number of Spindle Speeds: 5
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 – .003 – .006
Range of Spindle Speeds: 240 – 1,550
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): Step Pulley R8
Table Cross Travel: 9-1/2
Table Longitudinal Travel: 18
Table Size (L x W): 7-7/8 x 35-3/4
Travel of Knee: 14
Travel of Ram: 10-1/2
T-Slot Centers: 2-1/2
Weight: 1617
Work Table Weight Capacity: 500
