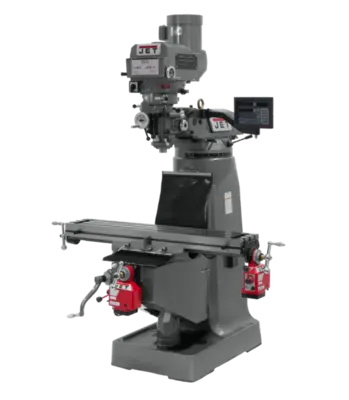

NEW JET JTM-4VS-1W/DP700
Overview
Features:
Adjustable gibs throughout
Heavy duty splined motor drive
Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
Large Diameter quill is chromed
One shot lubrication system
Precision hardened and ground ways and table
Spindle head is internally cooled
Tolerance test sheet included
Specs
Weight: 2420 lbs
Dimensions: 63 × 65.5 × 85 in
Collet Capacity: 1/8 – 7/8
Max Distance Spindle to Table: 17-1/2
Motor (HP): 2 HP, 115/230V, 1Ph
Number of Axis: 2
Powerfeed: X and Y-Axis
Quill Diameter: 3-3/8
Quill Down Feed Rates (IPR): .0015 – .003 – .006
Range of Spindle Speeds: 60 – 4,200
Spindle Taper: R-8
Spindle Travel: 5
Style (Type): Variable Speed R8
Table Cross Travel: 12
Table Longitudinal Travel: 28-3/4
Table Size (L x W): 9 x 49
Travel of Knee: 14-1/2
Travel of Ram: 13-3/8
T-Slot Centers: 2-1/2
Weight: 2420
Work Table Weight Capacity: 660
