NEW BAILEIGH DP-1000VS-220V
Overview
*220V 1-phase 2 hp motor.

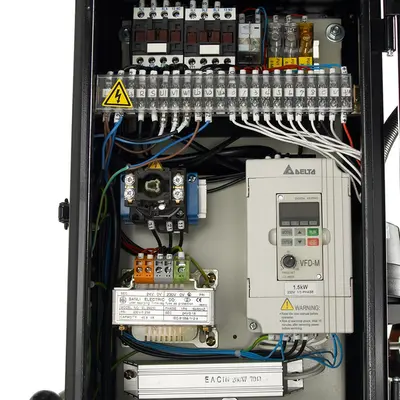

*Inverter-driven drill press.
*1” steel maximum capacity.

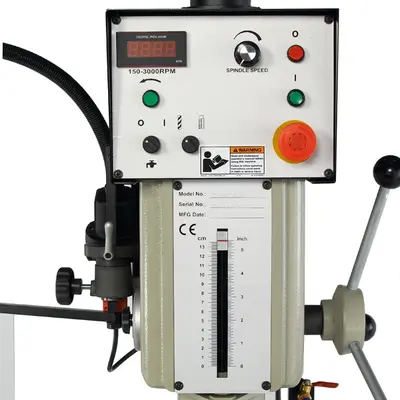

*Variable speeds: 150 to 3000 rpm.
Features:
2 hp motor requires 220-volt single-phase power and will work at virtually any shop or site
Inverter-driven head drills a maximum capacity of 1” steel
You can fine-tune the speed in the range from 150 to 3000 rpm to suit your application
Auto-reversing tap has a tapping capacity of 5/8” steel
Wide steel column eliminates flexing even when drilling at full capacity
Rigid cast iron base and table add strength to the drill’s structure
Comes standard with a coolant system, a feature that some competing companies consider an upgrade

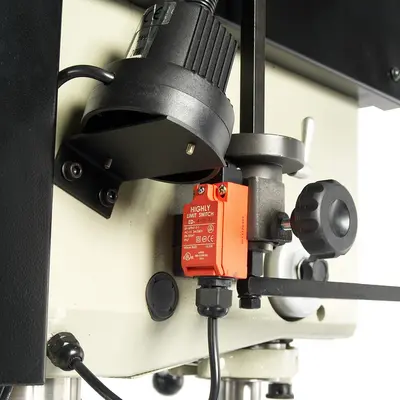

Includes a safety shield around the drill head to protect you, as well as a halogen light that bends to help you see the project better
Specs
Weight: 600 lbs
Dimensions: 60 × 44 × 83 in
Base Dimensions: 27" x 19"
Column Diameter: 3.62"
Drilling Capacity Cast Iron: 1.25"
Drilling Capacity Mild Steel: 1"
Input Power: 220V Single Phase
Motor (HP): 2 HP, 220V, 1 Phase
Quill Diameter: 2.44”
Shipping Dimensions: 60x44x83
Table Slots: .625"
Tapping Capacity Cast Iron: 3/4"
Weight: 6
