NEW BAILEIGH DP-3814B-110V
Overview
*14″ Swing
*Easy adjust head and table
*5 Spindle Speeds
*9″ x 10″ Table
*110V
Features:
1/2 hp motor requires 110-volt power and will work at virtually any shop or site

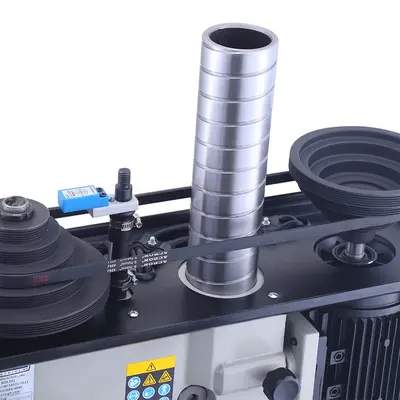

Belt-driven head drills a maximum capacity of 5/8” steel
Spindle speeds in the range from 250 to 2900 rpm to suit your application
2-3/4″ wide steel column eliminates flexing even when drilling at full capacity

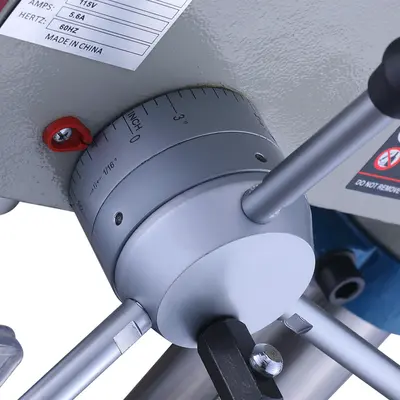

Easy to adjust table and head position with its clever screw type column
Rigid cast iron base and table add strength to the drill’s structure

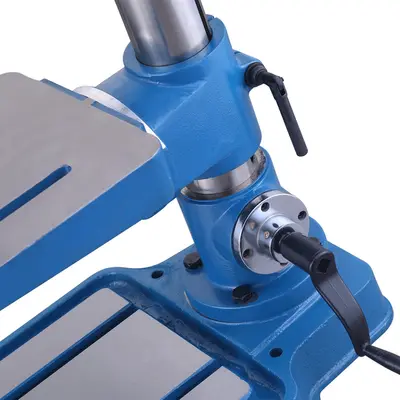

The table even tilts left or right to 45 degrees
Includes a safety shield around the drill head to protect you
Specs
Weight: 194 lbs
Dimensions: 48 × 31 × 20 in
Distance From Spindle To Base: 19-5/8"
Base Size: 18-3/4" x 12-1/2"
Chuck Size: .03" – .625"
Headstock Movement: Yes (360 degrees)
Input Power: 110 volt
Number of Spindle Speeds: 5
Shipping Dimensions: 48x31x16
Spindle Distance to Table (Max.): 11-1/2"
Swing: 14"
Table Material: Cast Iron
Weight: 194
Working Load Limit: Pound
