NEW BAILEIGH CS-315EU-220V

Illinois, United States
At Olympus Machinery Group our goal is to provide you with nothing but quality products and knowledgeable, timely customer service with your satisfaction being our top priority.
Overview
Circular Cold Saws

Features:
Runs on 220-volt 1-phase 60Hz power and accepts a 12.5” blade (included) with a 3.5” round tube capacity at 90°
Miters 45° to the left and right and spins at 52 rpm to cut through solids, tubing, or pipe
Perfect for cutting mild steel but can handle other material with the proper blade
Strong 2.5 hp motor coupled with a direct-drive gearbox, lets the blade cut the material chatter-free, increasing blade life
Operate this manual saw by gradually pulling the blade head into the material and controlling it with your own strength
European-style vise has a taper lock system for fast clamping and unclamping to increase production
Serrated vise jaws grip the material tightly, so it won’t budge during cutting and vise clamps on both sides of the cut, reduces blade chatter and prolonging blade life

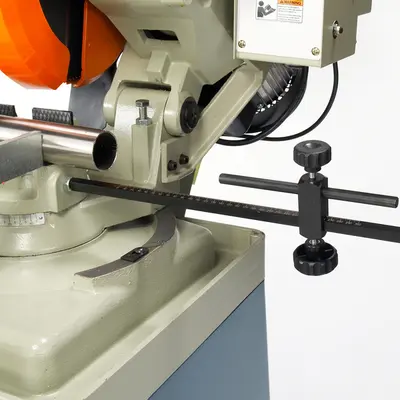

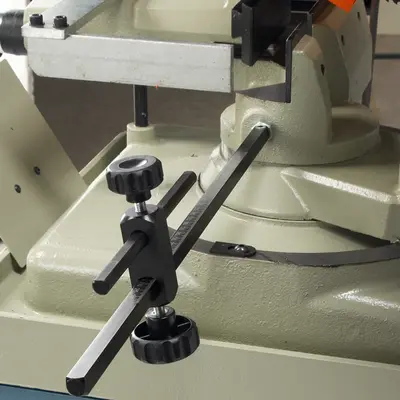

Stop rod helps you easily cut repeatable lengths for production runs
Rigid cast iron base stabilizes the machine for straight, accurate cuts and heavy-duty molded steel stand raises the saw to a convenient cutting height

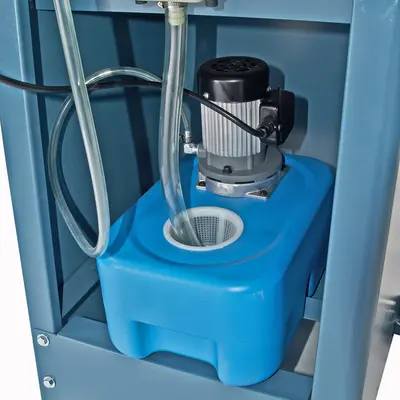

Powerful integrated coolant pump lubricates the blade and washes chips away and flood coolant system increases cut quality, makes the saw easier to handle, and makes the saw and blades last longer

Specs

Weight: 440 lbs
Dimensions: 36 × 25 × 39 in
Motor (HP): 2.5 hp
Solid Round at 45 Degrees: 2"
Solid Round at 90 Degrees: 2"
Style (Type): Single Action with Cam Lock
Tubing Rectangle: 4" x 2.75"
Tubing Round at 45 Degrees: 3.5"
Tubing Square at 45 Degrees: 3.2" x 3.2"
Tubing Square at 90 Degrees: 3.5"
Weight: 440
