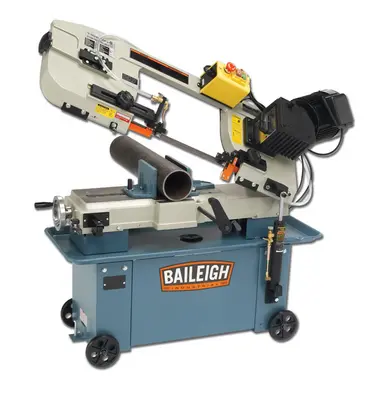

NEW BAILEIGH BS-712M-7

Illinois, United States
At Olympus Machinery Group our goal is to provide you with nothing but quality products and knowledgeable, timely customer service with your satisfaction being our top priority.
Overview
Horizontal Band Saws

*120V horizontal and vertical band saw
*7” round capacity at 90°
*Vise miters up to 45°
*.75″ blade width
*3 cutting speeds: 125, 215, 270 fpm
Features:
1 hp motor runs on 120-volt single-phase power, so you can use it almost anywhere
Cutting capacity of 7” OD round and 7’ x 10.25” rectangle at 90°
Miters up to 45° – simply loosen the vise and rotate it to the proper angle
Cast iron saw head and bow minimize vibrations, ensuring clean, accurate cuts
You can operate the saw in horizontal or vertical position (just lift the bow and lock it in place)
Adjustable blade guides attached to the saw head, with 8 sealed ball bearings, help align the blade and increase its lifetime of use
Head and bow are made from heavy cast iron, precisely machined to exacting tolerances, maintaining proper alignment during the cutting process
Electro-welded steel plate framework makes the machine sturdy and strong enough to cut at maximum capacity without trouble
Moves on wheels for portability
Includes chip removal brush and flood coolant system to keep the saw running smoothly for many years

Specs

Weight: 420 lbs
Dimensions: 53 × 17 × 43 in
Blade Guide: Roller
Blade Speeds (SFPM): 125 x 215 x 270
Capacity Round 90 X 45: 7" x 4.33"
Descent Control: Hydraulic
Drive: Gear
Input Power: 120 volt
Type of Miter Adjustment: Vise
Miter Angle Range (Deg.): 0 – 45°
Motor (HP): 1 hp
Return: Manual
Shipping Dimensions: 60x44x48
Table Height: 22"
Weight: 420
