NEW BAILEIGH DP-1400VS-220V
Overview
*1.25″ mild steel drilling capacity.
*Inverter-driven drill press.
*Variable speeds: 80 to 2500 rpm.

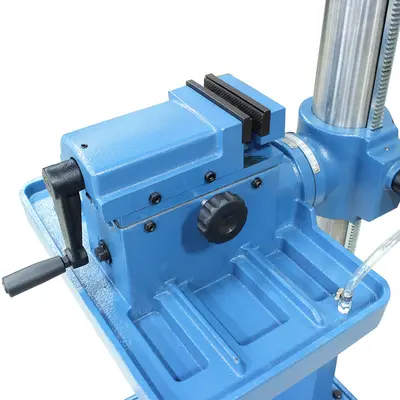

*Unique rotating table with integrated vise
*220V 1-phase 2 hp power.
Features:
2 hp motor runs on just 220 volts of single-phase power
Tackles a maximum drilling capacity of 1.25” mild steel
Heavy duty spindle transfers power to the #3 Morse taper tooling
Speed Potentiometer dial controls powerful inverter-driven head
Variable drilling speed, ranging from 80 to 2500 rpm, lets you choose the right setting to suit your application
Digital readout displays actual spindle rpm, ensuring precise results time after time
Features an auto-reversing tap function with up to .625” capacity
Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions
Base and 25.5″” x 17.75” table are made of a heavy iron casting to increase rigidity with very large .511″ T-slots which let a vise or fixture securely hold your material
Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan
Specs
Weight: 710 lbs
Dimensions: 60 × 44 × 83 in
Base Dimensions: 7.75" x 25.5"
Column Diameter: 4"
Drilling Capacity: Inch
Input Power: 220V / 1-phase
Quill Diameter: 2.44”
Shipping Dimensions: 60x44x88
Table Slots: .551"
Weight: 710
Max. Spindle Speed: 230 – 2500 rpm
Min. Spindle Speed: 80 – 1000 rpm
