NEW BAILEIGH BS-360SA-COLUMN

Illinois, United States
At Olympus Machinery Group our goal is to provide you with nothing but quality products and knowledgeable, timely customer service with your satisfaction being our top priority.
Overview
Horizontal Band Saws

*220V 3-phase semi-automatic saw
*14” round capacity at 90°
*1.25” blade width
*Variable speed: 77 to 252 fpm
*Hydraulic vice, downfeed, and return
Features:
Features include: Huge capacity of 14” round and 14” x 22” rectangle, 77 to 252 fpm variable blade speed, standard 1.25” blade (included) to make straight and accurate cuts, and a robust 5 hp motor that runs on 220-volt 3-phase power
Cast iron vise and bow, machined to exacting tolerances, ensure that cuts are as precise as possible

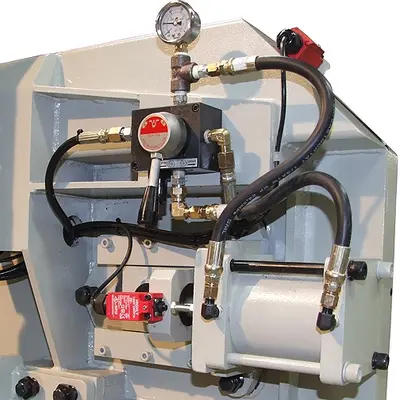

Industrial-grade hydraulic system controls the vise and the bow height
Fully sealed ball bearings used as blade guides track the blade smoothly and properly

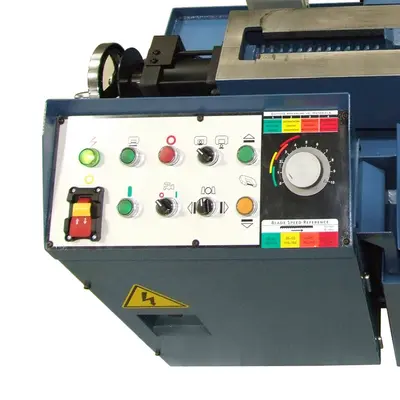

Easy-to-use control panel—with labeled buttons and dials for locking the vice, starting the blade, and more—lets you get up and running quickly
Patented hydraulic blade tension device makes it easy to get the right settings. Just line up the arrow with the green fluid-filled gauge
Electro-welded steel frame reduces vibrations and keeps cuts accurate over many years of production
Includes blade brake switch for safety
Flood coolant system washes away chips after cutting and helps blades last longer
Comes with a chip removal blade brush and bright halogen work light that gives you a clear view of what you’re cutting

Specs

Weight: 2600 lbs
Dimensions: 98 × 31 × 74 in
Blade Guide: Carbide x Roller
Blade Speeds (SFPM): 77 to 252 (Variable Speed)
Descent Control: Pressure Assist Hydraulic
Drive: Belt x Pulley
Horse Power (HP): 5
Input Power: 220V / 3-phase
Miter Angle Range (Deg.): N x A
Motor (HP): 5 hp
Rectangle at 90 Degrees: 14.17" x 22"
Return: Hydraulic
Shipping Dimensions: 98x31x74
Square at 90 Degrees: 14.17"
Table Height: 29.21"
Weight: 2600
