NEW BAILEIGH DP-1250VS-HS-HIGH
Overview
*220V 1-phase 2 hp motor.
*Inverter-driven drill press.
*1.25″ mild steel drilling capacity.
*Variable speeds: 100 to 4000 rpm.
Features:
2 hp motor runs on 220-volt single-phase power with a wide 20” swing
High speed drill press handles a maximum capacity of 1.25” mild steel
Includes quality auto-reversing tapping feature with a capacity of .75” mild steel

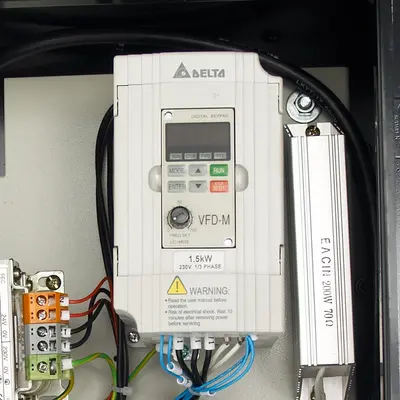

Efficient Delta® inverter drives the mighty #4 Morse taper spindle and regulates the amount of power and rpms to the spindle
Variable speed range from 100 to 4000 rpm lets you select the optimal setting for your application
Inverter lets you set the rpm to your desired speed within the continuous range instead of just a few settings
Machined, polished worktable offers large .625” T-slots for your work-holding device with a 4.5” wide column which minimizes flex and maintains accuracy
Heavy-duty cast iron base has a built-in coolant system to extend tooling life with an automatic tool ejector makes it easy to adjust the drill press for a given project
Protective spindle shield with limit switch keeps you and your shop safe

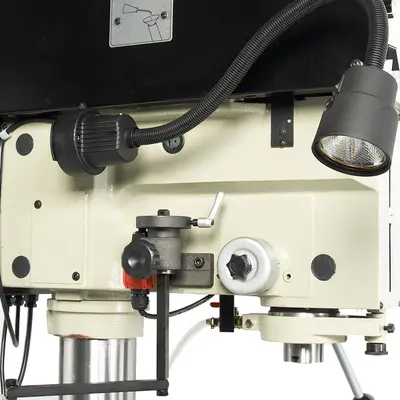

Comes standard with a halogen work light to help you get the job done under dark conditions
Specs
Weight: 865 lbs
Dimensions: 60 × 44 × 79 in
Base Dimensions: 27" x 19"
Column Diameter: 4.52"
Coolant Pump Motor: 1/8 hp
Drilling Capacity: Inch
Input Power: 220V / 1-phase
Motor (HP): 2 hp
Quill Diameter: 2.95"
Shipping Dimensions: 60x44x79
Table Slots: .625"
Weight: 865
Max. Spindle Speed: 540 – 4000 rpm
Min. Spindle Speed: 85 – 540 rpm
