NEW BAILEIGH SH-5203

Features:
Eight hydraulic hold downs providing 3.2 tons of pressure each, ensure the sheet of metal doesn’t lift while being sheared to the required length
Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements

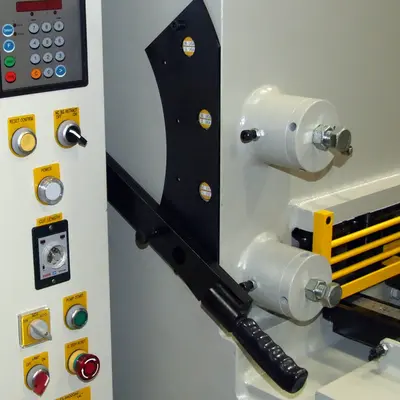

Heavy-duty hydraulic shear comes standard with a simple to operate control panel including the rake adjustment, jog/run/stop controls, program pad for the back gauge, and production counter
Shears blade gap can be altered by a simple handle adjustment in seconds when changing material thicknesses
High carbon chromium blades that have several edges, so as the blades wear, they can be flipped several times before re-sharpening is required
Simple remote operator controls pendant house an E-Stop button and foot pedal controls
The framework uses plate steel that is fully welded to increase stability and reduce vibration
Metal Cutting Shear includes front and rear product supports, a roller in feed table, and side guides to easily maneuver the plate steel for the next cut
Programmable quick change back gauge rides on a screw ball rail system that has a positioning encoder for accuracy
