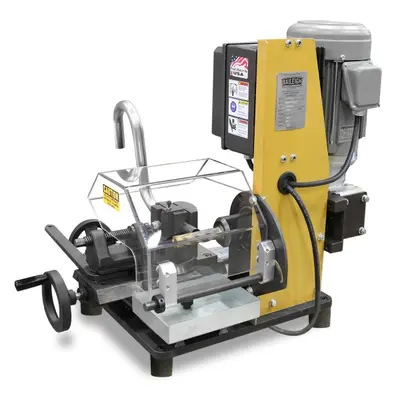

NEW BAILEIGH TN-700-110V

Illinois, United States
At Olympus Machinery Group our goal is to provide you with nothing but quality products and knowledgeable, timely customer service with your satisfaction being our top priority.
Overview
Notching Machines

Features:
2 hp motor runs on 115-volt power so you can operate it almost anywhere, including in the field
Notches up to 60°
Inverter driven variable speeds allow for the optimum milling speed that balances cutting power with long machine life and low wear and tear
Digital readout for RPM, included

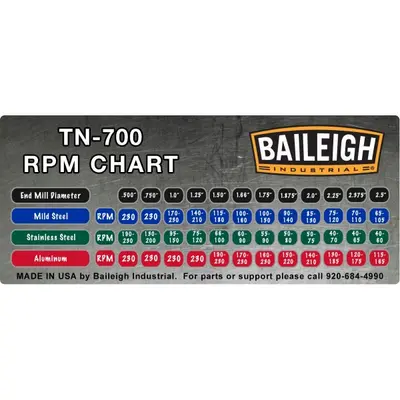

Included speed chart helps dial the perfect speed for your cut

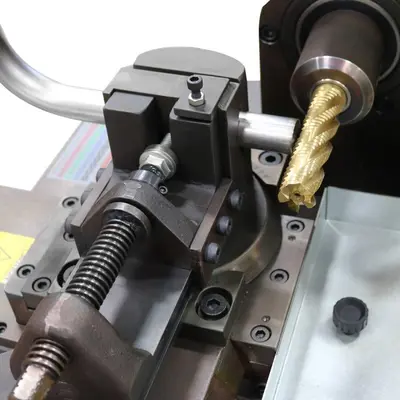

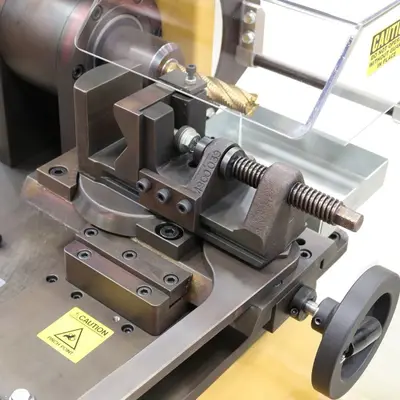

Vise adjusts in just about every way possible, featuring X- and Y-axis control to ensure a good cutting position
Degree or angle-finder makes it simple to check the angle and ensure repeatability
If you want a more traditional notch, the cam lock enables you to set your degrees; just move it in either direction to angle the notch
Heavy-duty cast iron framework reduces vibration, prolongs machine life, and delivers more accurate results
Optional portable cart with wheels, so that when you’re not using the TN-700 you can roll it out of the way

Specs

Weight: 350 lbs
Dimensions: 36.0 × 36.0 × 36.0 in
Angle Adjustment: 0 – 60 Degrees
Gross Weight: 340
Motor Amps: 2HP
Notch Capacity (in./OD): .5 – 2.5
Range of Speeds: 3200 beats / minute
Weight: 350
