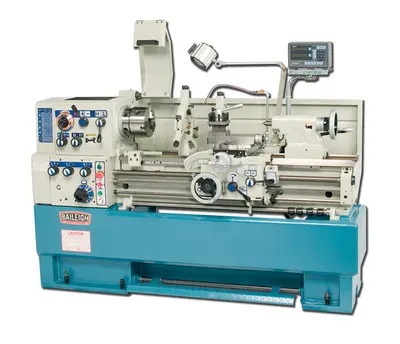

NEW BAILEIGH 1801640-7-1/2HP
Overview
*Mitutoyo DRO
*Heavy cast iron base
*40” between centers
*30 to 2,000 rpm
*7.5 hp 220-volt 3-phase motor
Features:
12 speeds from 30 to 2,000 rpm with a 7.5 hp motor which runs on 220-volt 3-phase power
Factory-installed Mitutoyo DRO (digital readout) helps you make precise cuts with no assembly required
Precision ground and hardened ways will withstand years of use in any metalworking shop
⅝” square indexing tool post with a steady rest and follow rest
Collar system lets you set stops for repeat parts
This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter
Full cast iron base, integrated into the mainframe, makes this one of the most rigid lathes on the market
Comes standard with 3-jaw chuck, emergency foot brake, and Halogen work light
Headstock chuck guard with automatic safety switch and flood coolant system (with backsplash guard) to prolong machine life
Specs
Weight: 3940 lbs
Dimensions: 90 × 37 × 81 in
Bed Height: 12.20"
Center Height: Inch
Compound Rest Width: Inch
Compound Slide Travel: 4.75"
Range of Cross Feeds (MMPR): 40 / .015 – .320 mm / rev.
Cross Slide Travel: Inch
Cutting Tool Max Section: .625" x .625"
Distance Between Centers: 40"
Input Power: 220V / 3-phase
Leadscrew Thread Pitch: 4 T.P.I.
Lead Screw Diameter: Inch
Longitudinal Feeds Imperial: 40 / .0012" – .0252" / rev.
Longitudinal Feeds Metric: 40 / .032 – .640 mm / rev.
Quill Taper: Morse #6
Shipping Dimensions: 90x37x81
Spindle Bore: 2.0625"
Spindle Taper with Sleeve: Morse #4
Swing Over Bed: 16"
Swing Over Cross Slide: 9.45"
Swing Through Gap: 23.42"
Table Length: 74.75"
Tailstock Spindle Travel: 4.75"
Taper in Tailstock Spindle: 2.125"
Weight: 3940
Width of Bed: 11.81"
Speed: 30 – 2000 rpm
Threads Metric: 53 / .4–14 mm pitch
Threads Modular: 44 / .4–7 M.P.
