NEW BAILEIGH PL-1860E-1.0-18

Illinois, United States

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

At Olympus Machinery Group our goal is to provide you with nothing but quality products and knowledgeable, timely customer service with your satisfaction being our top priority.
Overview
Gap Lathes

*2-axis DRO
*Sheet steel and cast iron base
*60” between centers
*25 to 1,800 rpm
*7.5 hp 220V 3-phase motor
Features:
7.5 hp motor runs on 220-volt 3-phase power and 12 spindle speeds from 25 to 1,800 rpm
Perfect for shops or schools that need more capacity on a budget with no assembly required

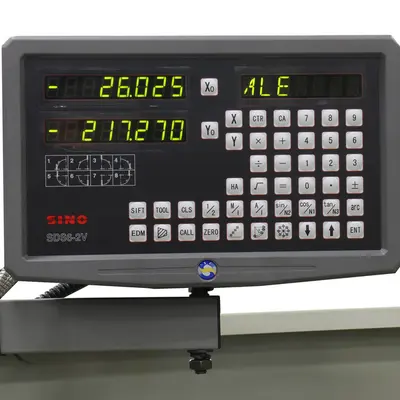

2-axis digital readout (DRO) system
Precision ground, hardened, and then polished to ensure smooth movement
Cross-ribbed bed adds strength and stability
Cast iron and sheet steel base supports the main frame and will stand up to years of use
Gap lathe design allows you to remove a section of the slide for slightly more diameter
Comes standard with 3-jaw universal chuck (8”) and 4-jaw chuck (13”), Headstock chuck guard with automatic safety switch, and 8″ back plate
Other features include steady rest and follow rest, Emergency foot brake, integrated coolant system with rear splash guard, and Halogen work light

Specs

Weight: 5650 lbs
Dimensions: 116 × 45 × 66 in
Center Distance: 60"
Input Power: 220V / 3-phase
Leadscrew Thread Pitch: 4 T.P.I.
Lead Screw Diameter: Inch
Longitudinal Feed Imp: 122 / .0015"-.0913" / rev.
Modular Pitch Threads Range: 21 / .25 to 10 M.P
Motor (HP): 7.5 hp
Nose Radius: D1-8
Number of Spindle Speeds: 25-1800 rpm
Quill Taper: MT7
Shipping Dimensions: 116x45x66
Spindle Bore: 3.125"
Spindle Taper with Sleeve: MT5
Swing Over Bed: 18"
Swing Over Cross Slide: 10-3/4"
Swing Through Gap: 27.5"
Tailstock Spindle Travel: 6"
Weight: 5650
Width of Bed: 13-1/8"

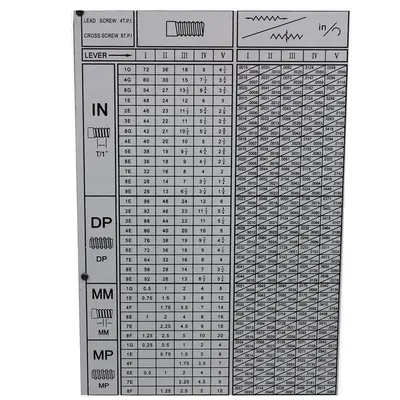

Threads Diametrical: 45 / 3-1/2 to 96 D.P
Threads Imperial: 61 / 1-5/8 to 72 T.P.I
