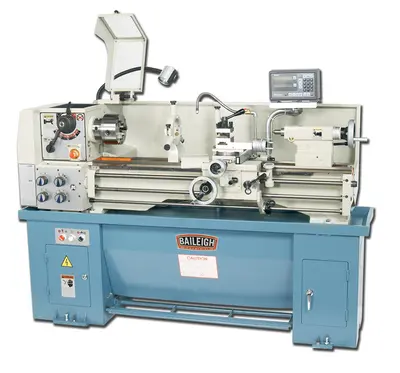

NEW BAILEIGH PL-1340-2
Overview
*Mitutoyo DRO
*Quick-change tool post
*40” between centers
*70 to 2,000 rpm
*2 hp 220-volt 1-phase motor
Features:
2 hp motor runs on 220-volt single-phase power with 8 speeds from 70 to 2,000 rpm is great for shops with limited power and no assembly required
Comes with a factory installed Mitutoyo DRO (digital readout) for making precise cuts
Capable of making metric and standard threads
Quick-change 4-way tool post saves you time and hassle
All movement of the machining carriage rides on precision ground and hardened slideways
This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter
We use the best iron castings in the industry to support the ways and maintain high accuracy over many years of use
Comes standard with 3-jaw chuck, headstock chuck guard with automatic safety switch, steady rest and follow rest
Other features include an emergency foot brake, Halogen work light, and flood coolant system (with backsplash guard) to prolong machine life
Specs
Weight: 1630 lbs
Dimensions: 76 × 40 × 62 in
Center Height: Inch
Compound Rest Travel: Inch
Compound Rest Width: Inch
Cross Slide Travel: Inch
Cutting Tool Max Section: .625" x .625"
Distance Between Centers: 40"
Input Power: 220V / 1-phase
Leadscrew Thread Pitch: 8 T.P.I.
Lead Screw Diameter: Inch
Longitudinal Feeds Imperial: 32 / .0020" – .5480" / rev.
Longitudinal Feeds Metric: 32 / .052 – 13.92 mm / rev.
Modular Pitch Threads Range: 21 / .2–3 M.P.
Quill Taper: Morse #5
Shipping Dimensions: 76x40x62
Spindle Bore: 1.5"
Spindle Taper with Sleeve: Morse #3
Swing Over Bed: 13"
Swing Over Cross Slide: 7.79"
Swing Through Gap: 18.75"
Table Length: 5.125"
Tailstock Spindle Travel: 4.5"
Taper in Tailstock Spindle: 1.65"
Weight: 1630
Width of Bed: 7.375"
Speed: 70 – 2000 rpm
Threads Diametrical: 32 / 8–120 D.P.
Threads Imperial: 31 / 4–56 T.P.I.
