New | in-Stock

NEW BAILEIGH BSV-12VS-V2-120V

Illinois, United States
At Olympus Machinery Group our goal is to provide you with nothing but quality products and knowledgeable, timely customer service with your satisfaction being our top priority.
Overview
Vertical Band Saws

*120 volt
*Variable speed
*12.2″ throat depth
*6.875” maximum cutting thickness
*1/8” to 1/2” blade width

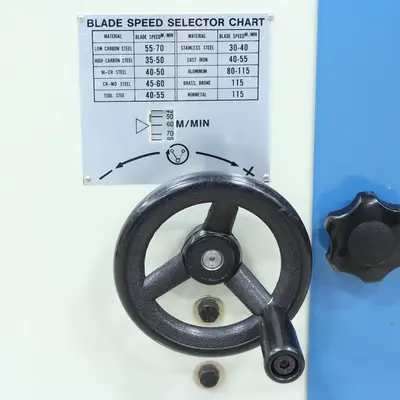

*Variable speed: 100 to 1000 fpm
Features:
1 hp motor runs on 120-volt power and accepts standard 1/8” to 1/2” blades
Wide 12.2″ throat depth and 6.875” maximum cutting thickness
Cast iron table can pivot front to back and left to right while the LED work light lets you see what you’re cutting more clearly
Variable speed from 100 to 1000 fpm allows you to adjust the speed for cutting wood, metal, and even plastic
Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life
This industrial-grade band saw includes everything you need to cut out the center of the material without having to fix a cut through it
Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together
Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades
Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years
Air blowdown system cools the blade and keeps the saw clean from material chips and shavings

Specs

Weight: 668 lbs
Dimensions: 36 × 24 × 68 in
Blade Length: Range 93.3" – 98.03"
Blade Speed: 100 – 1000 fpm
Blade Thickness: Inch
Blade Width: 1/8" – 1/2"
Input Power: 120 volt
Motor (HP): 1 hp
Shipping Dimensions: 60” x 45” x 81”
Table Tilt (Deg.): 45°R & 15°L
Throat Depth: 12.2"
Weight: 668
Speed Control: Inverter
