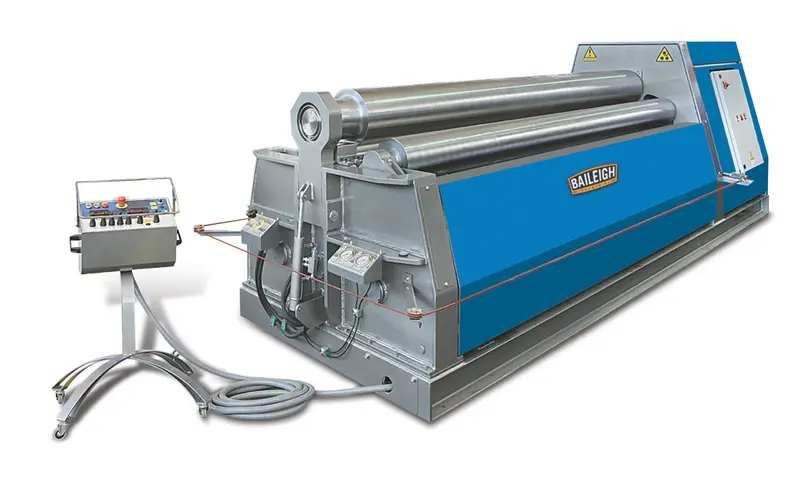

NEW BAILEIGH 480

Features:
½” mild steel capacity and 120” (10-foot) length
Large 10 hp motor runs on 480-volt 3-phase power and includes conical bending system
All 4 forming rolls are hardened and polished with 2 central driven rolls
Dual hydraulic motors and high-efficiency planetary gearboxes directly rotate the 2 driven rolls
Front rolls have independent hydraulic lifters that go in the orbital pattern
Stabilizer torsion bar system keeps front rolls parallel to the top roll
Plate is always pinched during the rolling cycle, so there’s no chance to lose the position
Conveniently movable operator console with control panel and toggles on the console make it simple to control the roll movement
2 DROs on the control panel show the front and back roll positions for repeatability
Hydraulic system for material removal: yoke on top roll drops, allowing the roll to lift
