NEW ECKOLD KF 800

Eckold KF 800 Kraftformer

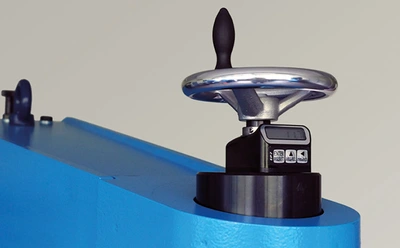

The Eckold KF 800 Kraftformer Shrinker/ Stretcher has an unmatched throat depth of 31.5″ (800 mm), allowing for new possibilities and even greater flexibility when shaping large sheet metal parts at a very economical price. The KF 800 can easily handle materials up to 14 gauge (.078″ / 2 mm) mild steel. The KF 800 is air driven and released by a foot pedal, either in single or continuous stroke mode. The single stroke function combined with the big reach is especially useful for correction jobs. Depending on the need of forming force, the machine has two stroke settings. A digital display shows the ram position with a 0.1 mm precision which results in a high repeatability of the forming force.
The machine is adjustable in height, allowing the operator an ergonomic working position. As with all of the other Kraftformer models, the vast number of tooling available makes the KF 800 the perfect machine for professional metal shapers. Tooling options are available for shrinking, stretching, doming, planishing, flattening, straightening and more. The forming tools have a quick-change design which helps eliminates down time.
Eckold KF 800 Kraftformer Features:
Massive throat depth of 31.5” (800 mm)
Easy accessibility on larger work pieces
Single and continuous stroke modes
Precision setting of forming forces
A variety of tooling inserts for different materials and forming operations
Eckold has been a leader of shrinking and stretching technology since 1957 because they offer an unrivaled range of solutions. These machines have been an industry favorite in sheet metal forming or finishing work because they’re precise, durable, and easy-to-use. When sheet metal needs to be shaped and profiles must be bent, Eckold is your industry leader.
